280zx front wilwood brake upgrade kit 12" rotors , Dynalight caliper, 15 inch wheel minimum
This Willwood kit has larger 12" rotors with same caliper. only fits 4 lug hubs, contact us for 5 lug option.

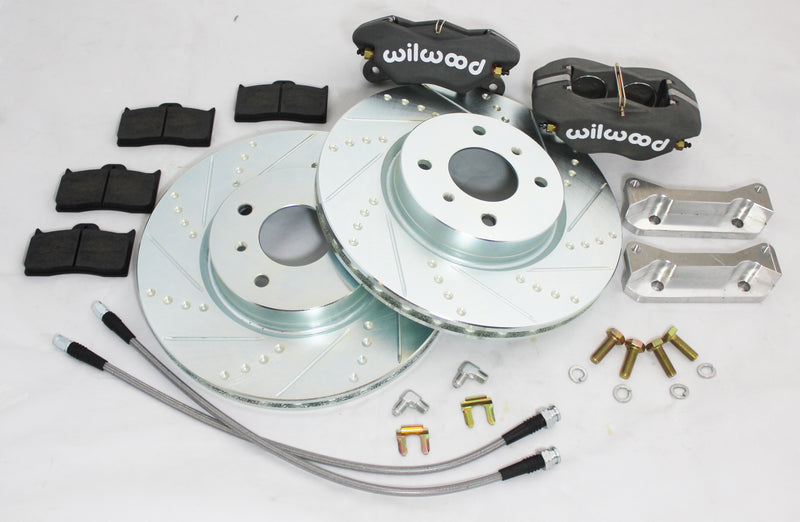

This brake kit includes:

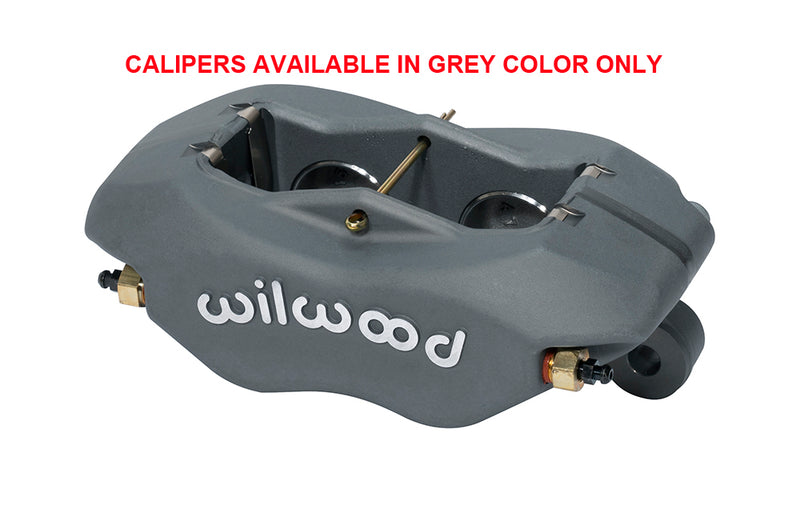

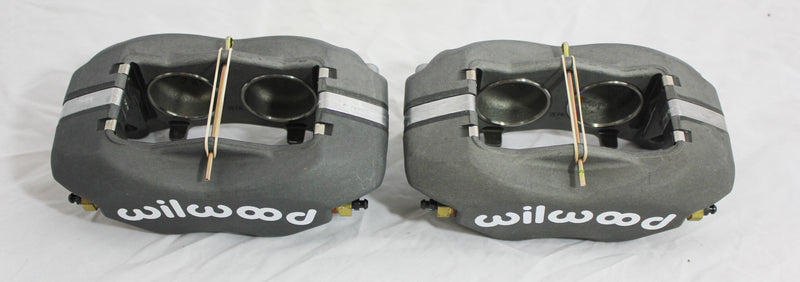

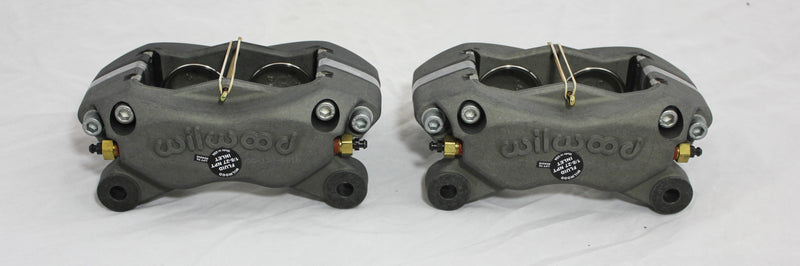

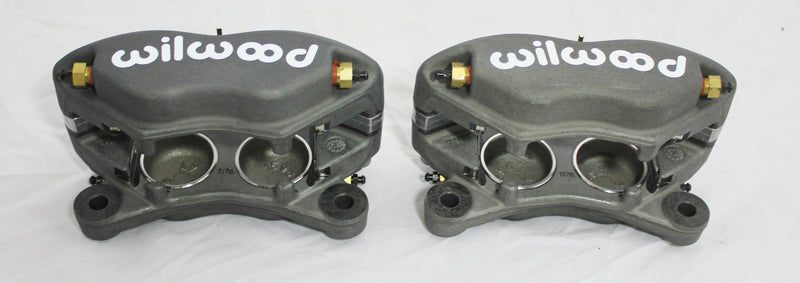

1. Enormous Aluminum 4 piston calipers (43.75mm pistons)
2. 305MM, 12 inch CNC drilled, slotted, vented, Zink plated, and machine balanced rotors

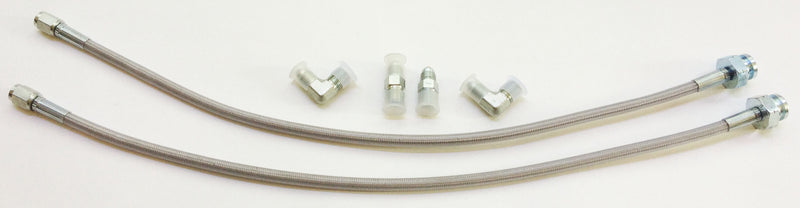

3. DOT approved custom fabricated steel braided brake lines

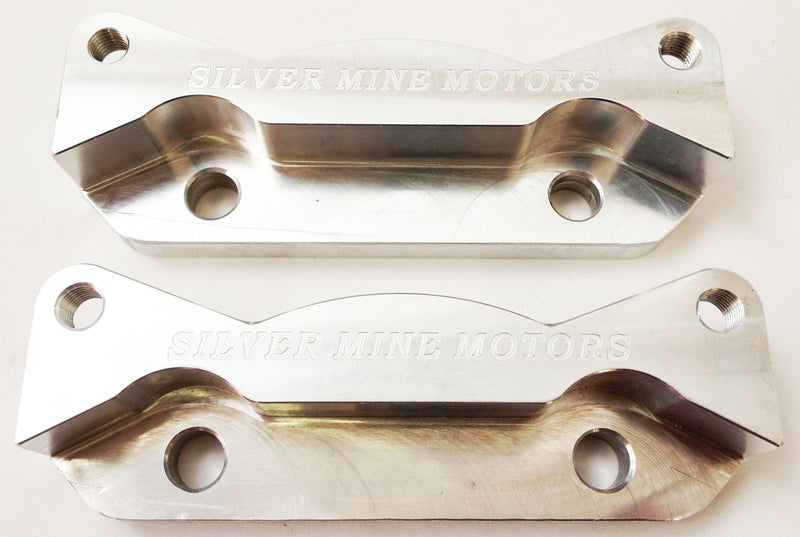

4. Custom fabricated T6061 aluminum brackets

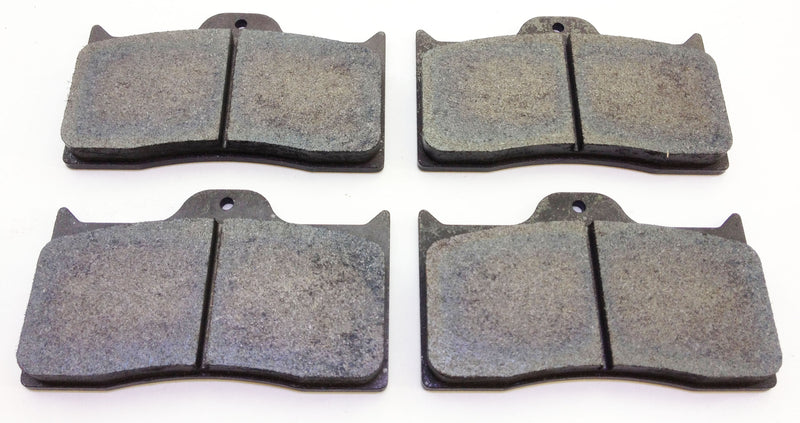

6. Wilwood brake pads

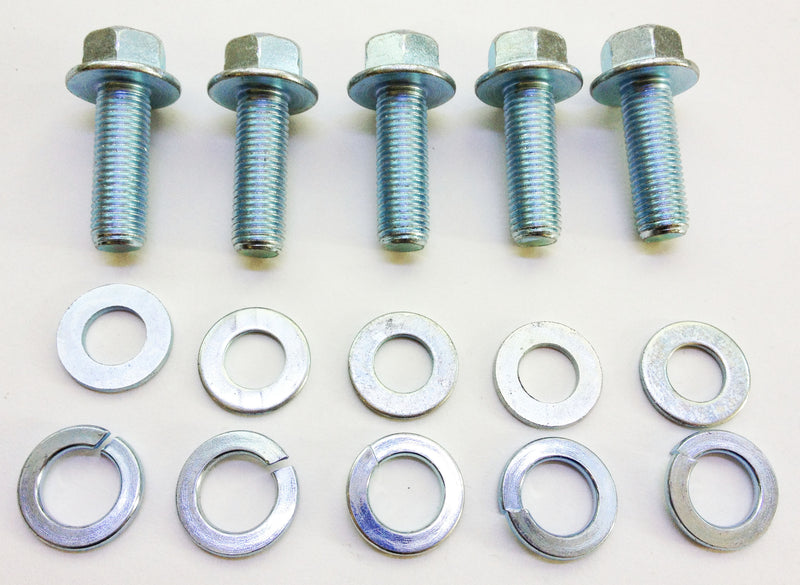

7. All the needed hardware
This kit is a complete kit. There are no other parts needed to complete the installation. Installing is very easy, and can be done in less than two hours. The lightweight Aluminum 4 piston calipers have 41mm diameter pistons. These calipers are available in many local auto parts stores, so replacing them is not a problem (part number Wilwood 6816). The vented slotted and drilled rotors are professionally built with CNC machines, and zinc plated to prevent rusting. The steel braided brake lines are custom made to fit this brake kit for easy installation. The aluminum caliper brackets are made of the highest grade of aircraft quality aluminum on the market T6160. These brackets are very light and extremely strong. They will never rust or corrode. You have the choice of getting performance street brake pads or race only pads. I personally have this brake kit on my 280zx and it made a big difference, my car now stops on the dime. This brake upgrade is also extremely lightweight; it will help reduce the amount of unstrung weight. This is important since it will allow your suspension to react to road conditions much faster than with heavy cast iron calipers. Your car will handle better and be more predictable. Over all it’s a great brake kit that will make your Z stop faster and better than you could ever imagine
Note: Requires 15 inch wheels or larger. 15x8 +10 Work Equips wheels will not fit with out a 4mm spacer. Some 15-inch wheels fit and some do not! we are not responsible. Watanabe RS 15x9.5 -19 and 16x8 wheels will not fit unless you use a 5MM spacer! ROTA RKR 15x9 -15 offset will fit this brake kit easily!!!! You need to reuse your stock caliper bolts to hold the bracket onto your spindle. The bolts hex head is too thick and you will have to grind it thinner so it doesn’t hit the rotor.
HOW TO INSTALL VIDEO CLICK LINK:
https://www.youtube.com/watch?v=Jl4mnVWZ6rA&t=1s
