Silver Mine Motors now offers these beautifully designed and manufactured CNC 5 lug front hubs. These hubs are made of aircraft grade T6061 Aluminum. They are modeled after a 280z front hub. they use stock 280z front bearings and hub center cap. We decided to model the hub after the 280z hub instead of the 240z since the 280z hub is thicker by 1/3" and is less prone to failure. These hubs will fit on 240z and 280z front suspensnion.
Our engineers added material inside and out to add strength and durability. The inner bearing race mount has been filled in for extra support. These hubs will be able to withstand hard track use as well as daily street use!
Bolt pattern for wheel mounting are 5x114.3MM (5x4.5 Inch) same as 300zx, ford mustang, many others
Bolt pattern for rotor mounting are 5x103MM
These bolt patterns are the same as the Nissan Z31 300zx front hub
Each set of hubs will come with brad new bearings and races, and either stock or 35MM long extended wheel studs (stock M12x1.25 thread size). we can subtrack $10 if you don't want studs with your order. instead of press in wheel studs we thread these hubs with M12x1.25 thread so you can use a bolt as your wheels stud.

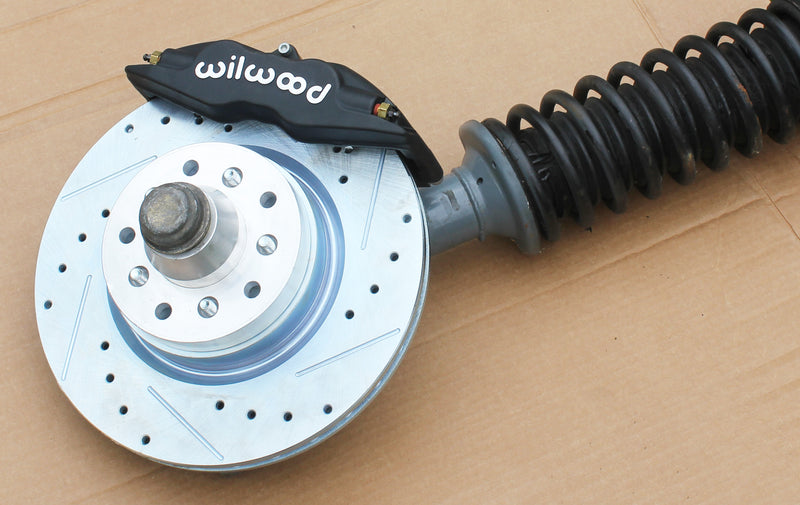

All of our front brake upgrades can be modified to fit these hubs! Simply order the brake kit you want along with these hubs. We will make sure everything bolts right up for you. See the pictures of our most popular brake upgrades installed with these Hubs.
If you allready have your own brake system, you can easily modify the rotors to work with these hubs. Just Re-drill your rotor bolt pattern to 5x103 bolt pattern. Then the rotors will work with the hubs and you can bolt on the calipers. Remember you now have a 280z hub, so your brake kit needs to be for a 280z front hub, not a 240z.
A video of our customer installing these 5 lug hubs with our wilwood kit. You can use these hubs with any of our brake upgrades.
