Calipers come in grey or red. No more black color.

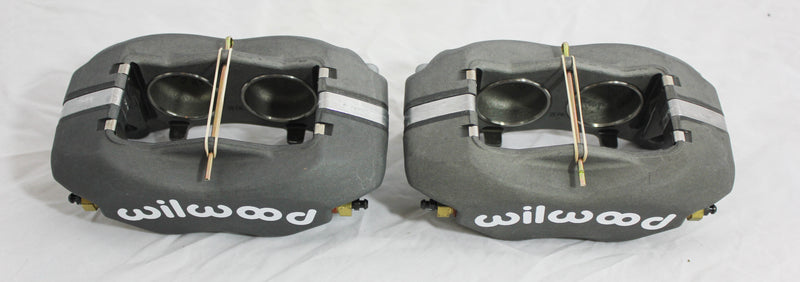

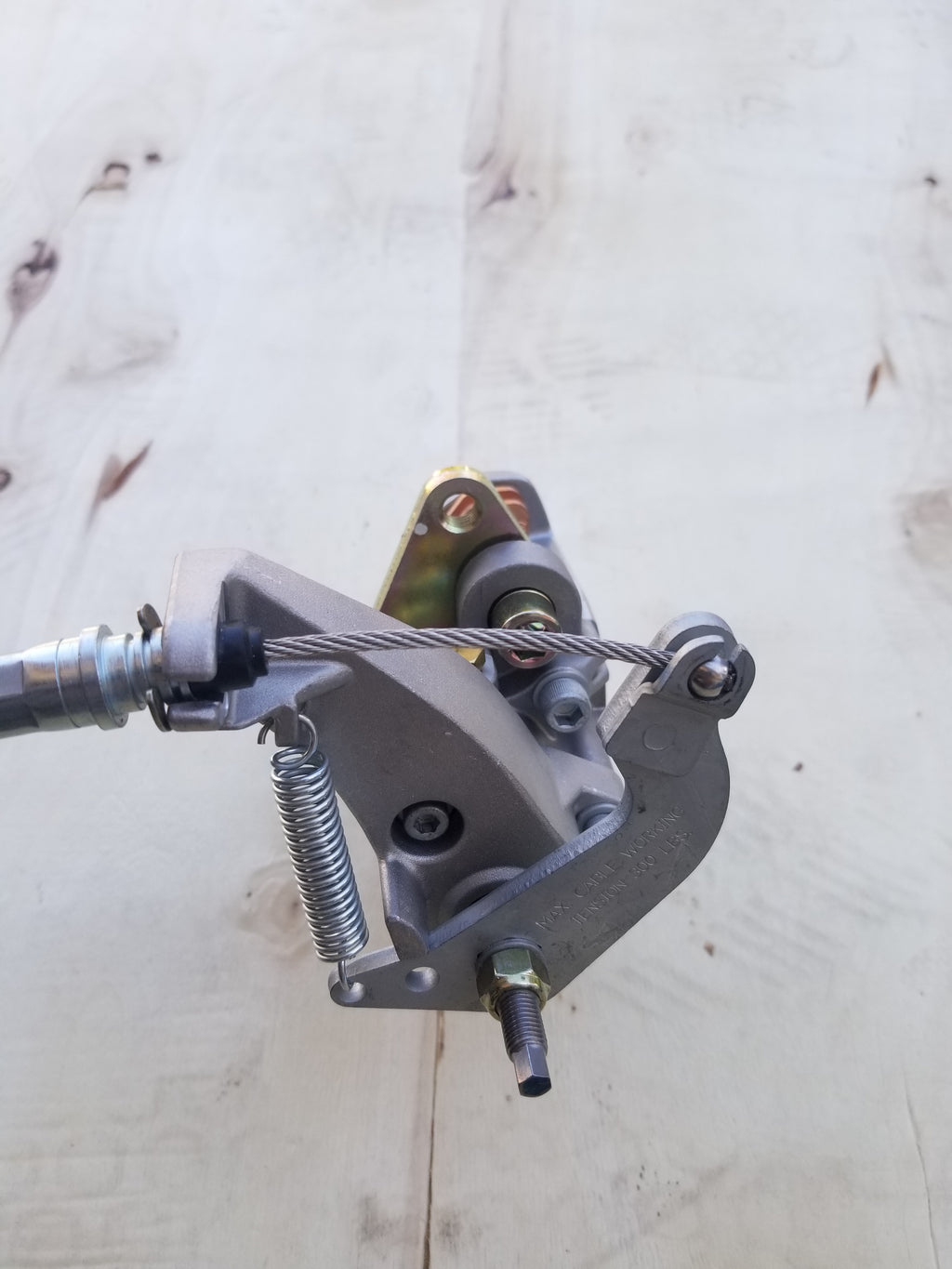

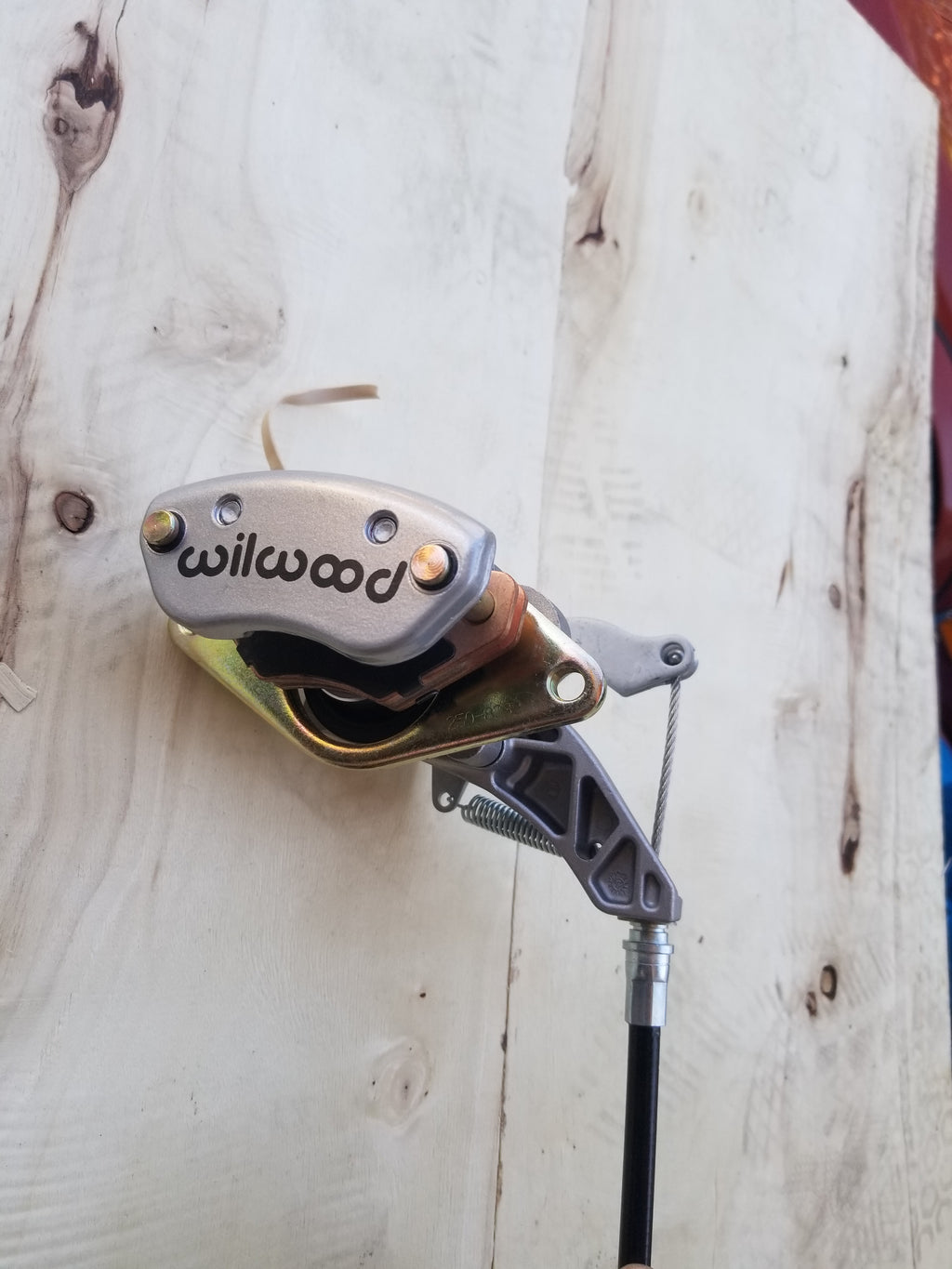

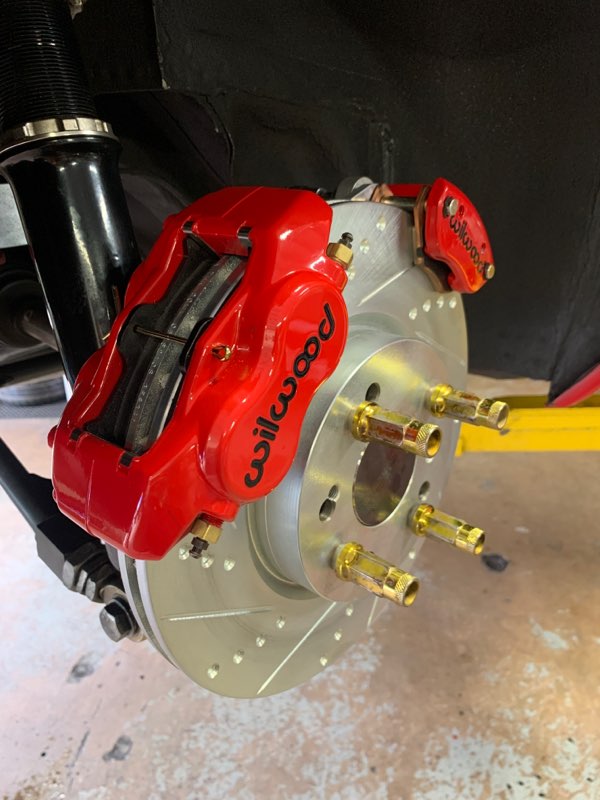

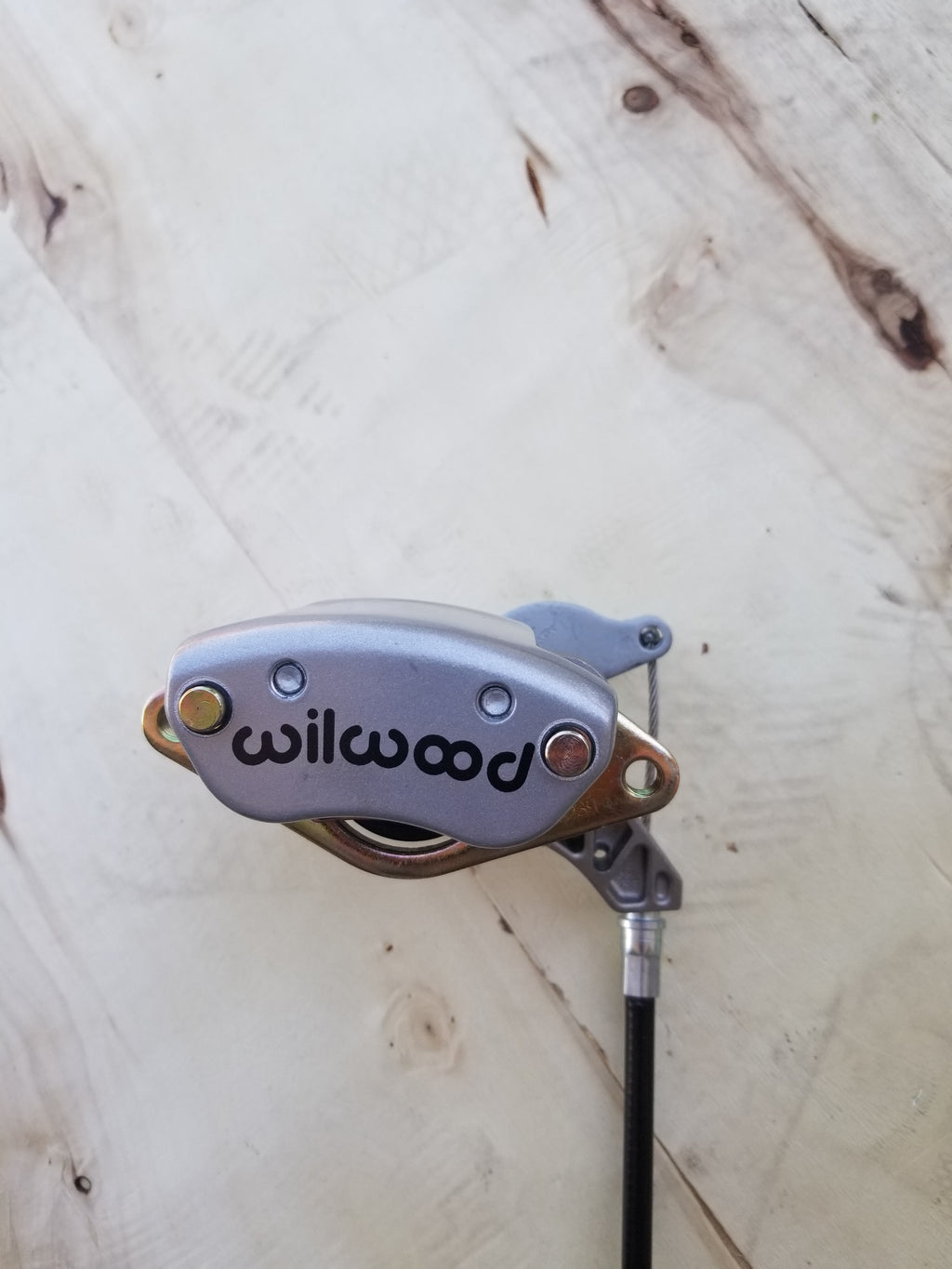

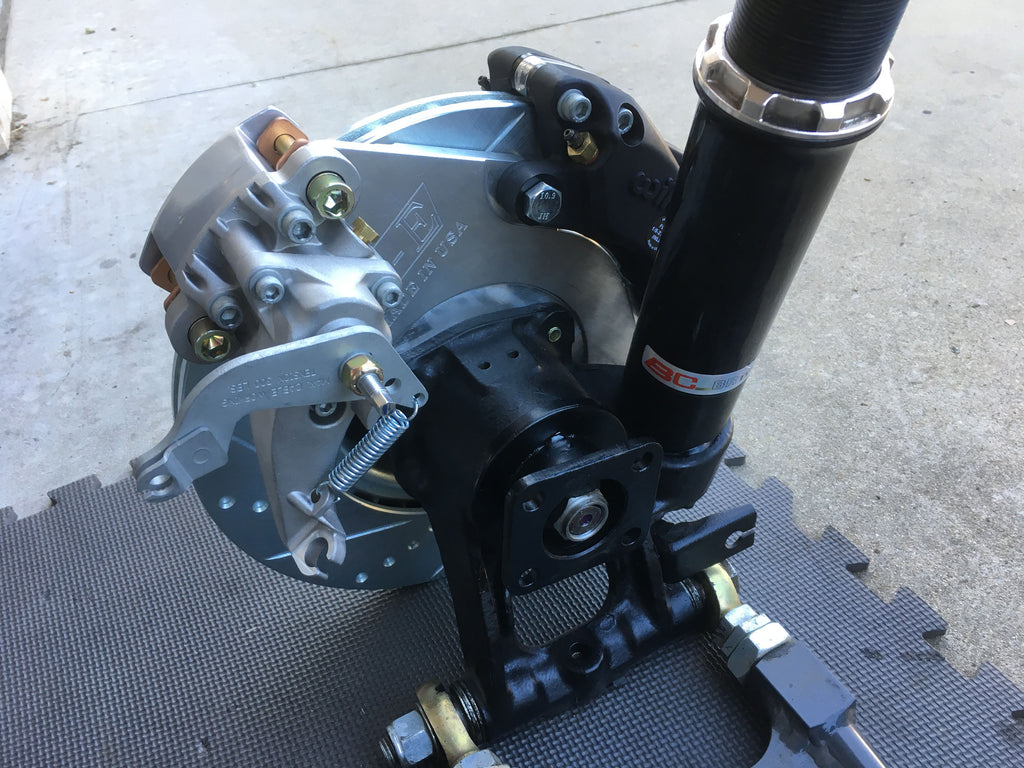

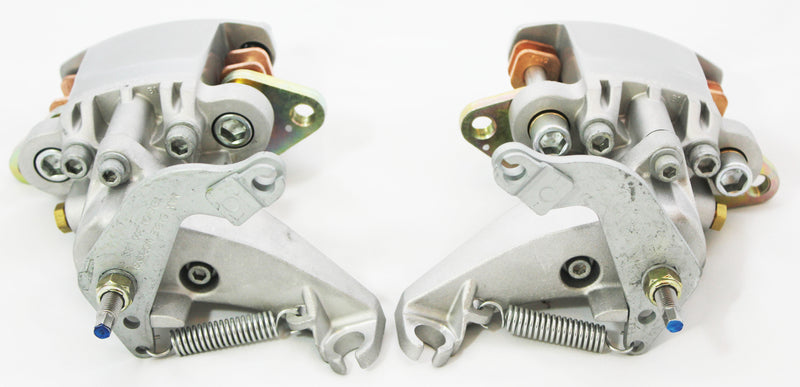

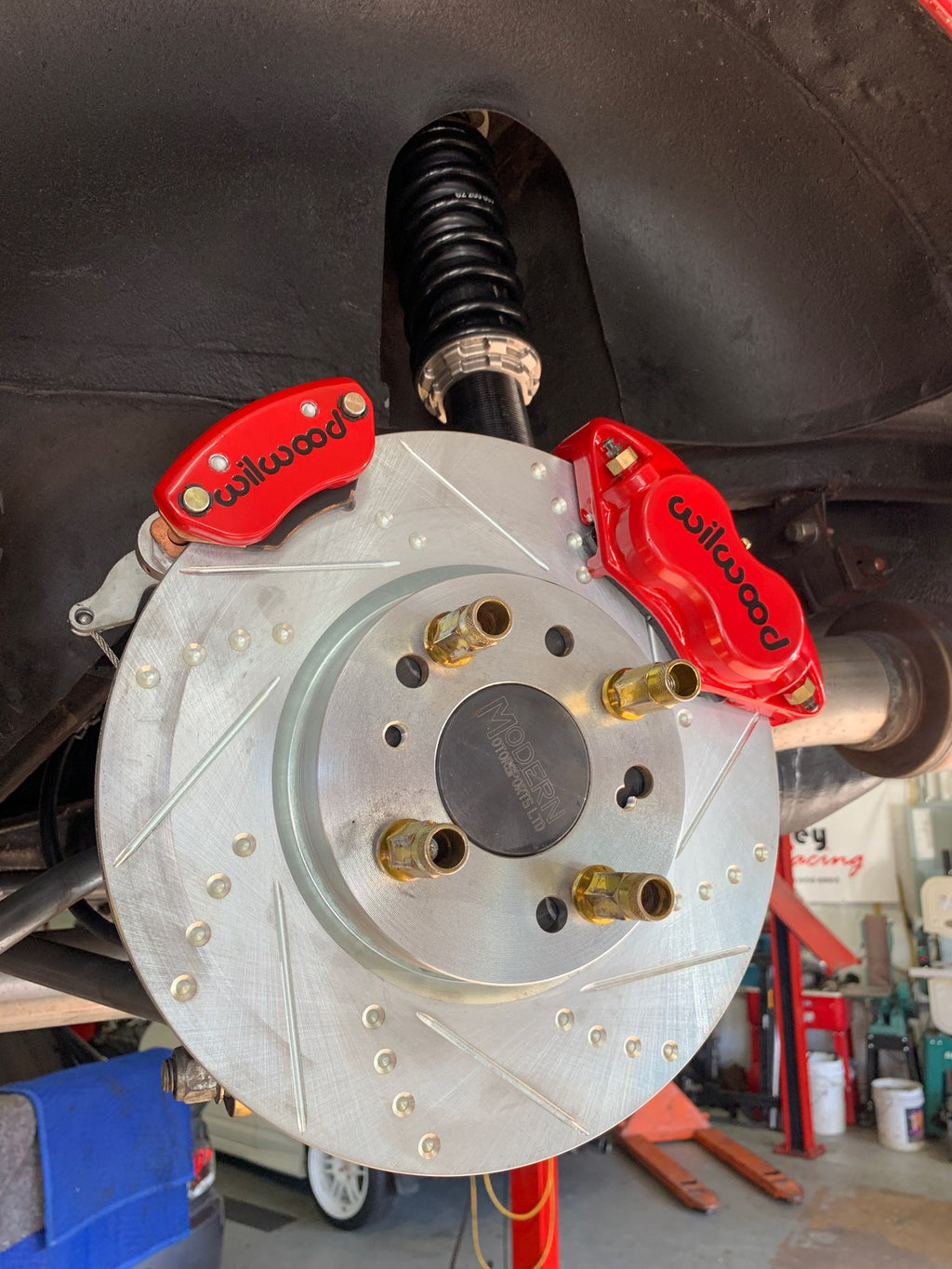

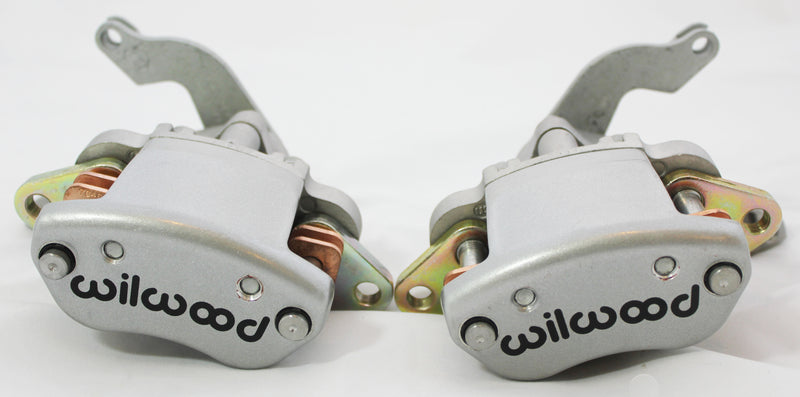

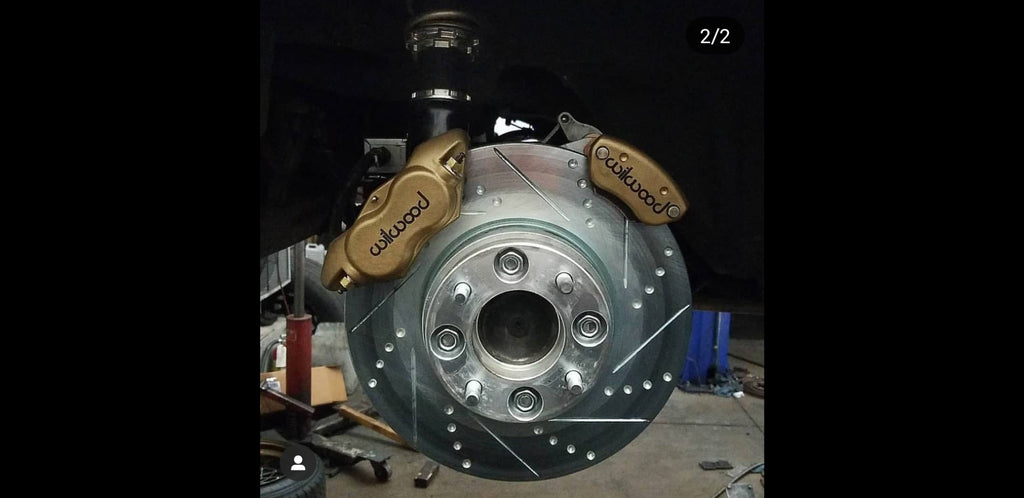

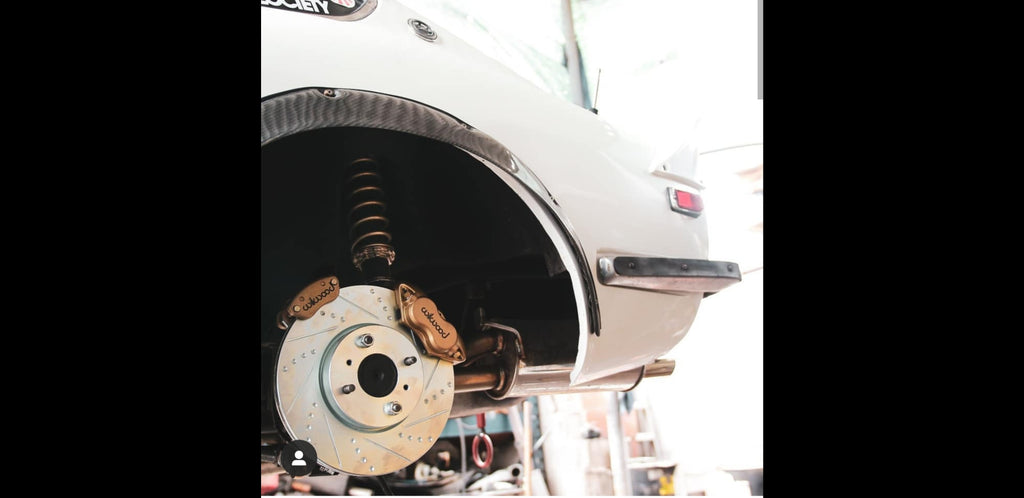

Wilwood rear brake kit for 240z 260z 280z with dedicated cable handbrake caliper. This Rear brake upgrade will allow you to have 2 rear Wilwood calipers. First caliper is part number 120-6816 4 piston caliper. Second caliper is Wilwood 120-12070. It's a cable acuated caliper.

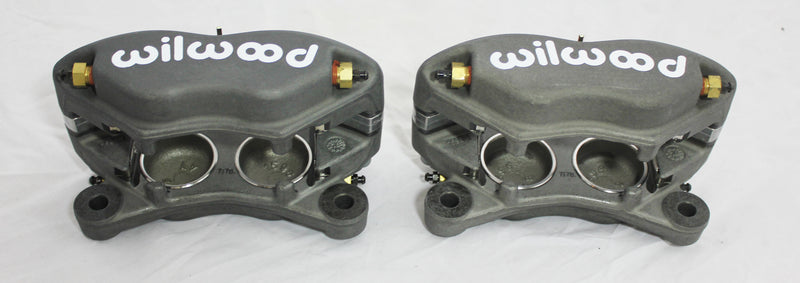

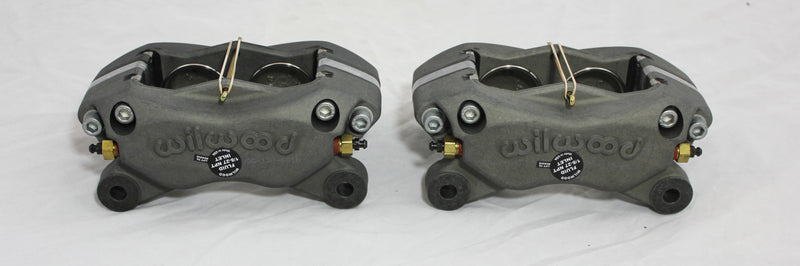

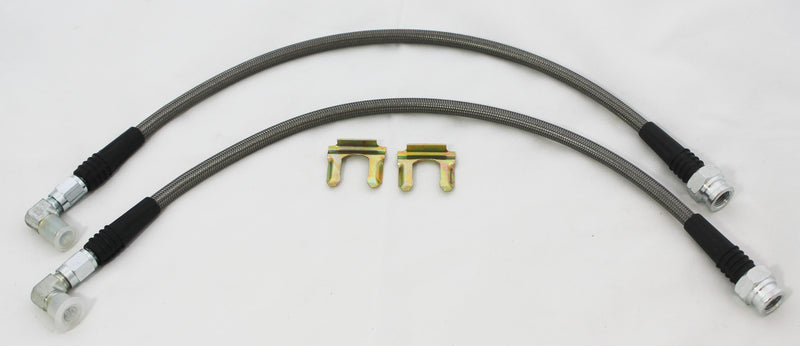

One caliper will hook up to your stock brake system that is controlled by your foot brake pedal. Second caliper gets connected to your stock handbrake. This kit gives you MUCH more stopping power and heat dissipation, as well as a dedicated emergency brake caliper. This brake kit includes: 1. Enormous Aluminum 4 piston calipers (43.75mm pistons) 2. 305MM,12 inch CNC drilled, slotted, vented, Zink plated, and machine balanced rotors 3. DOT approved custom fabricated steel braided brake lines 4. Custom fabricated T6061 aluminum brackets 6. Wilwood brake pads 7. All needed hardware 8. wilwood cable calipers and pads

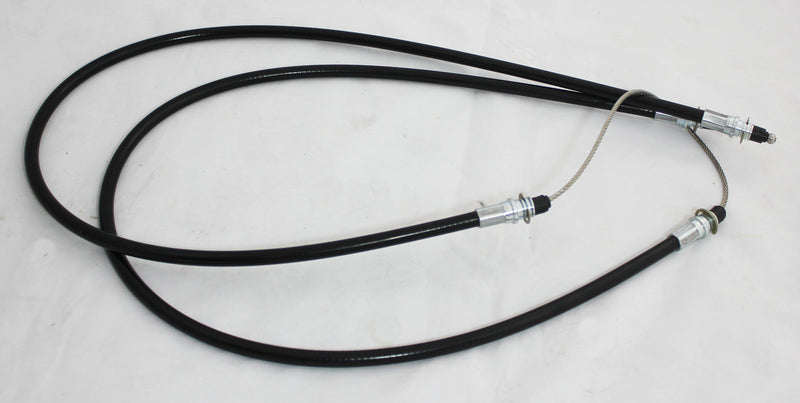

9. Custom made emergency brake cables (NOT PICTURED)

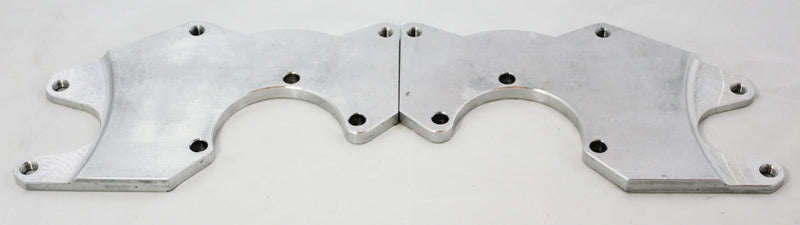

This is a complete kit. There are no other parts needed to complete the installation. Installing is very easy, and can be done in less than two hours. The lightweight Aluminum 4 piston calipers weight only 3.4 pounds and have 43mm diameter pistons. These calipers are available in many local auto parts stores, so replacing them is not a problem (part number Wilwood 6816). The vented slotted and drilled rotors are professionally built with CNC machines, and zinc plated to prevent rusting. They can be bought at any local auto part store (2005 Nissan Sentra SE-R front Brembo rotor). The steel braided brake lines are custom made to fit this brake kit for easy installation. The Aluminum caliper brackets are made of the highest grade of aircraft quality aluminum on the market T6061. These brackets are very light and extremely strong. They will never rust or corrode. You have the choice of getting performance street brake pads or race only pads.This brake upgrade is also extremely lightweight; it will help reduce the amount of unstrung weight. This is important since it will allow your suspension to react to road conditions much faster than with heavy cast iron calipers. Your car will handle better and be more predictable. Over all it’s a great brake kit that will make your Z stop faster and better than you could ever imagine!

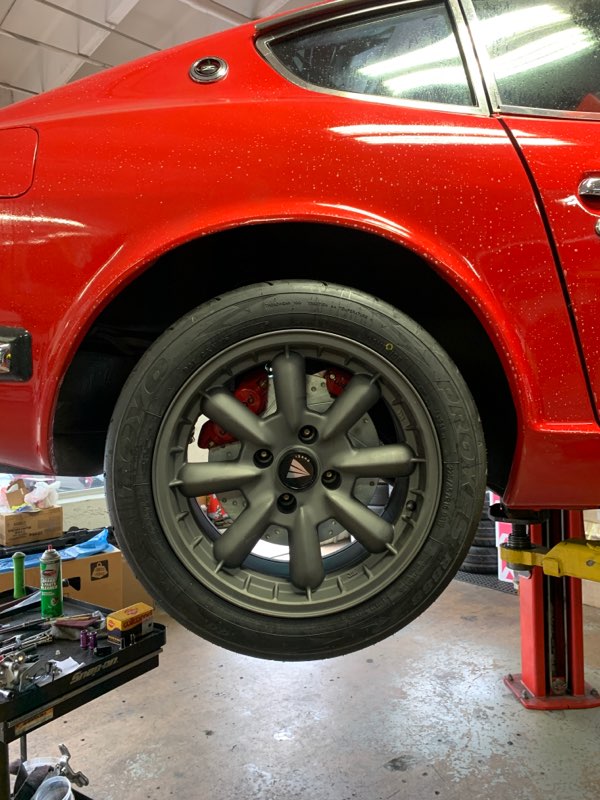

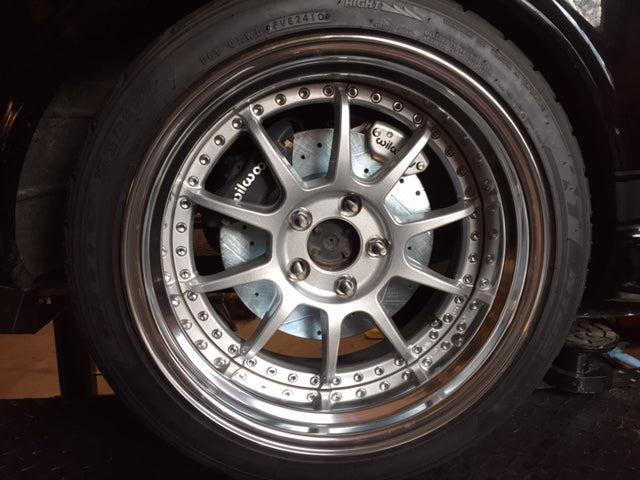

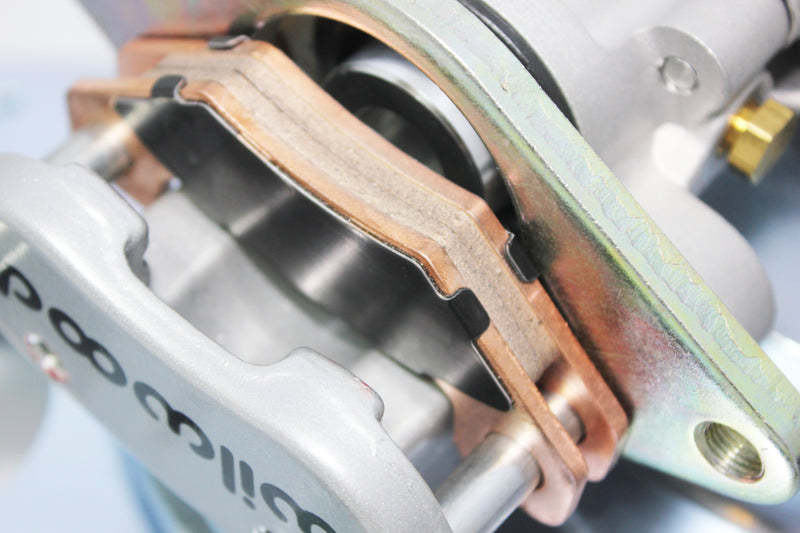

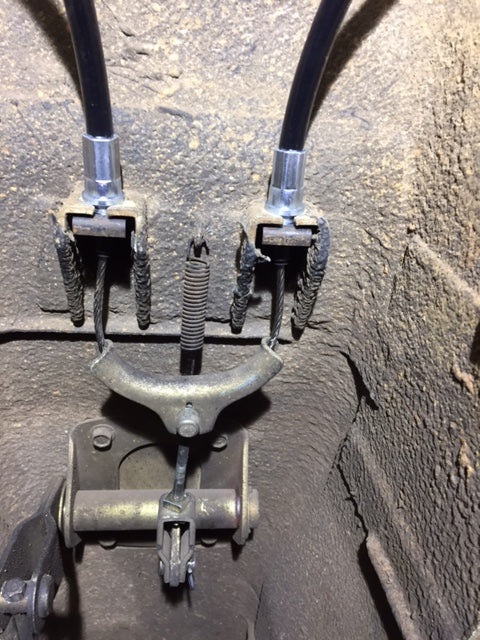

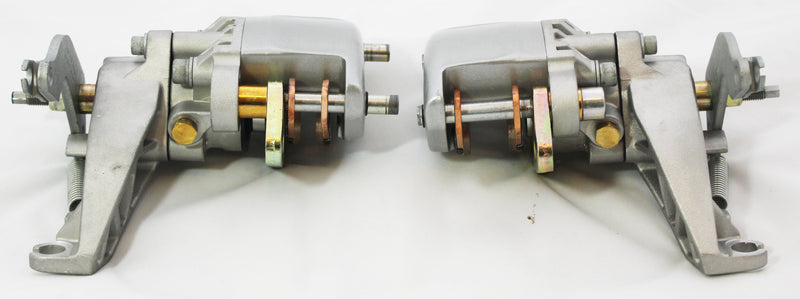

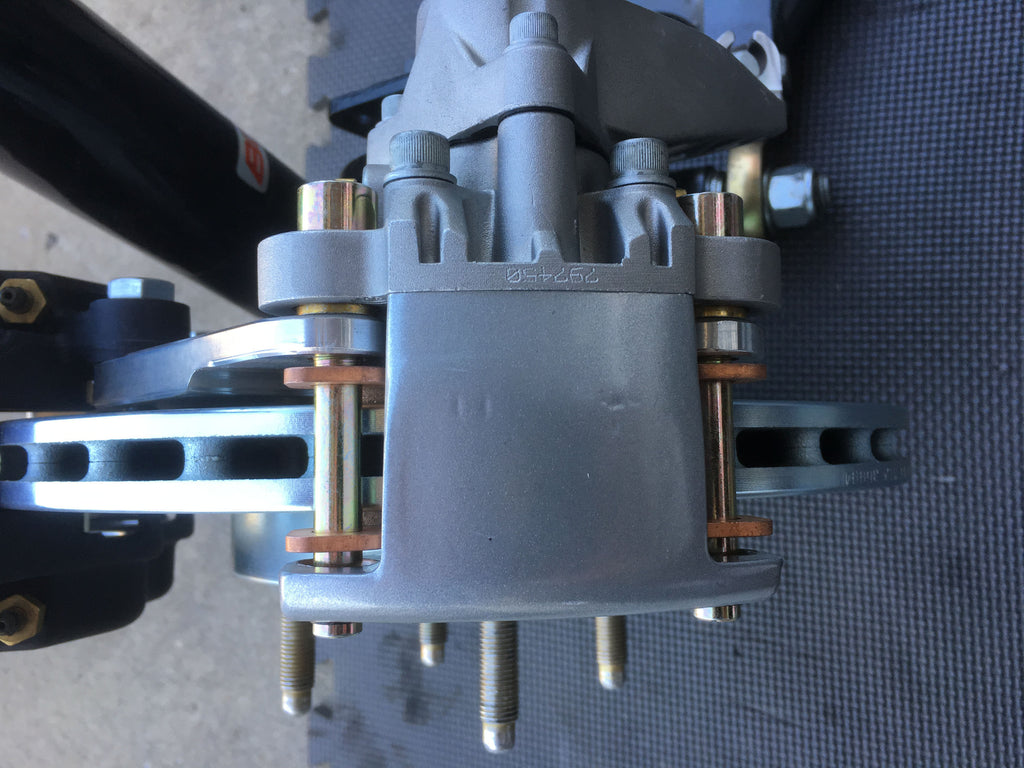

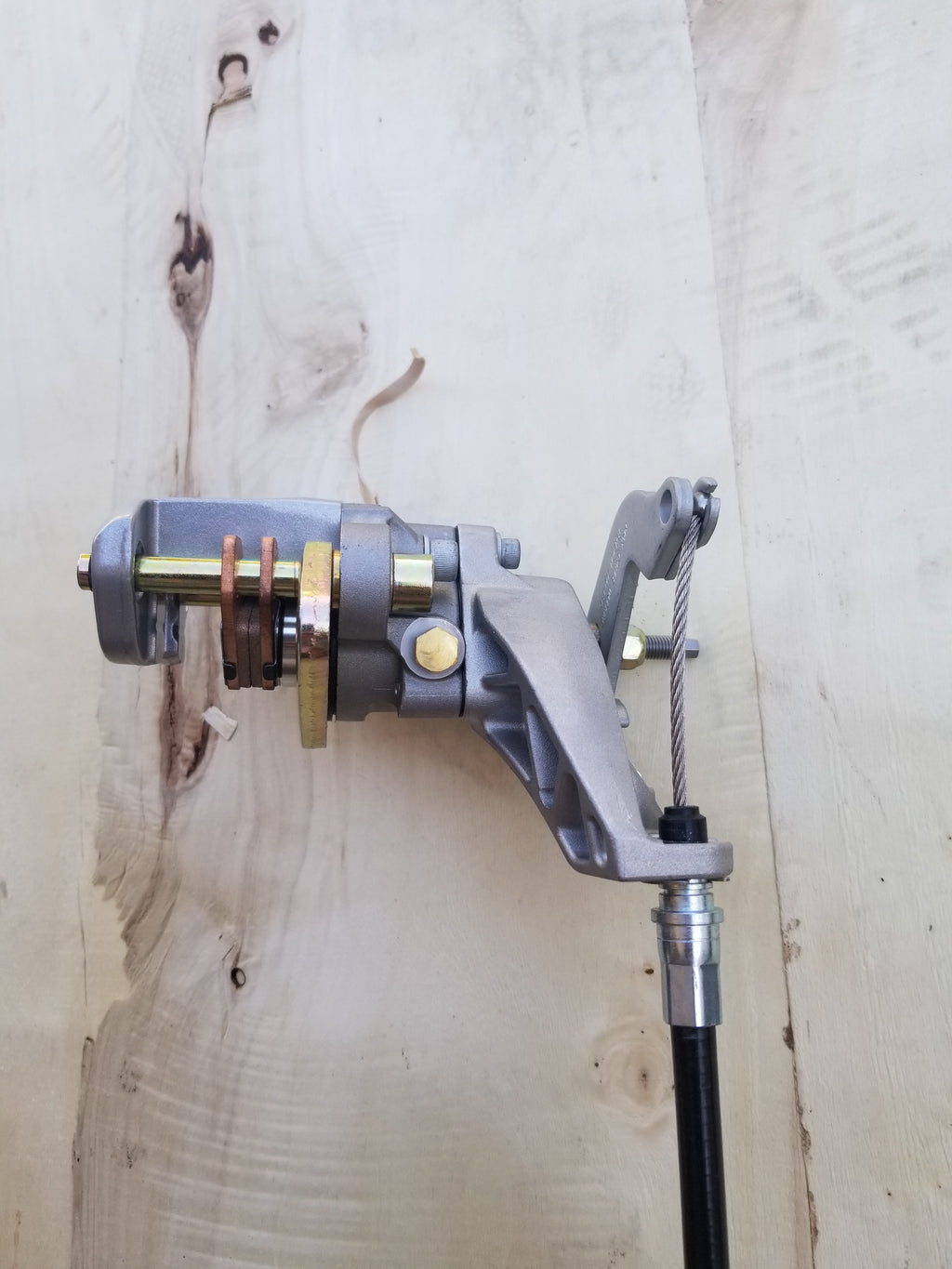

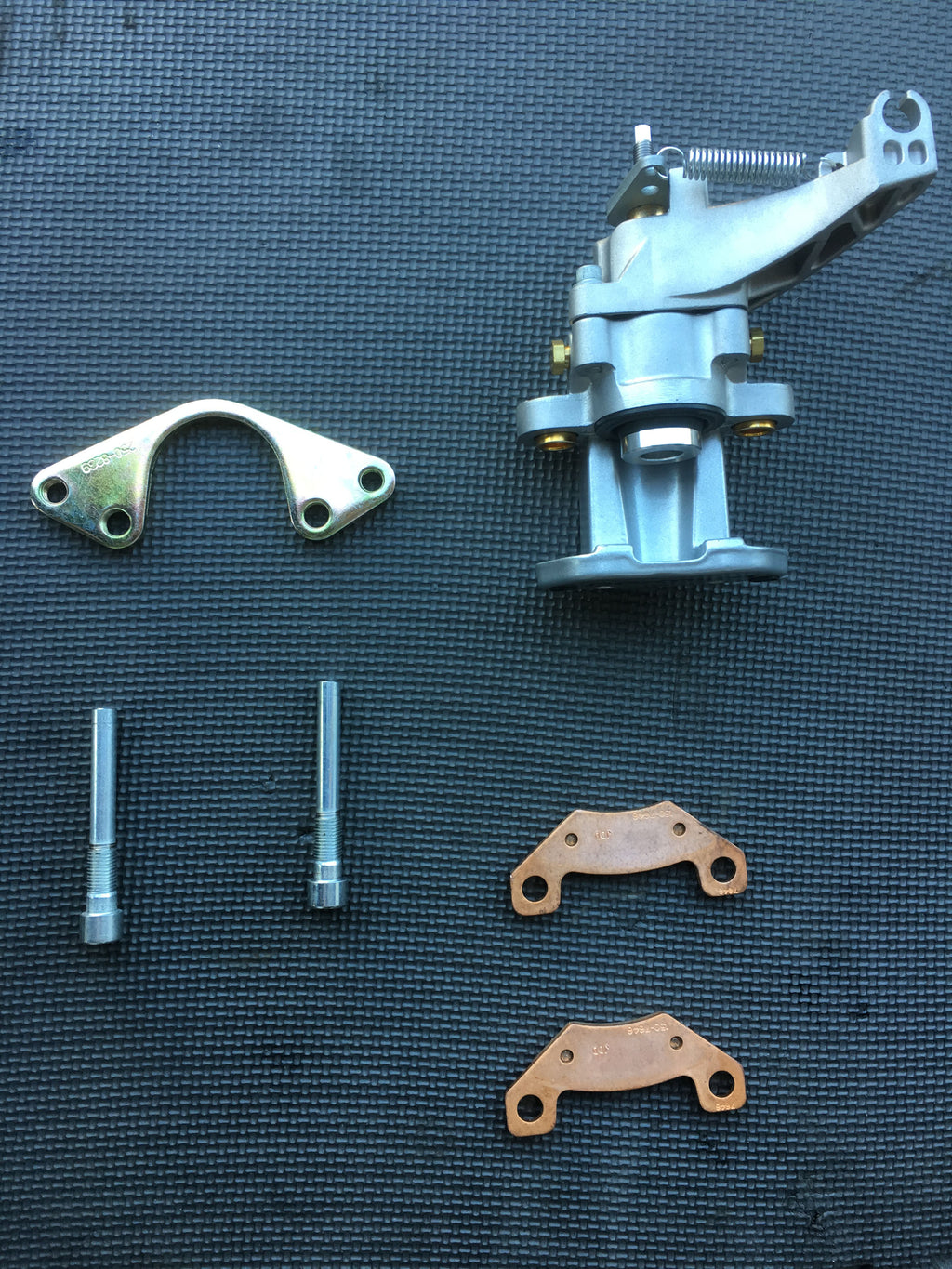

Note: Requires 15 or 16 inch wheels. Rota RKR 15x9 -9 offset wheel will fit this brake kit. You also have to grind your stub axel diameter down by 1MM to fit rotors over. This kit does have cable E-brake capability. The emergency brake calipers come with shims behind the brake pads. You will have to remove the shims before you slide caliper onto the rotor. you will need to adjust the slack in the linkage underneath the e-brake handle. If there is still slack, you can tighten the calipers cable slack on the parking brake with the adjustment bolt on the back of the caliper.
How to add a Park Brake to your Arizona Z Car Track Pack brakes! see link below.
