Electric Power Steering kit for 240z 260z 280z Datsun 1970-1978 S30
Electric Power Steering kit for 240z 260z 280z Datsun 1970-1978 S30
Electric power steering is the newest steering technology available. Electric power steering is superior to hydraulic because it has no power steering fluid, no leaky power steering hoses, no dry power steering pump, and no rack and Pinion. The result is more reliable, with fewer parts to break or replace.

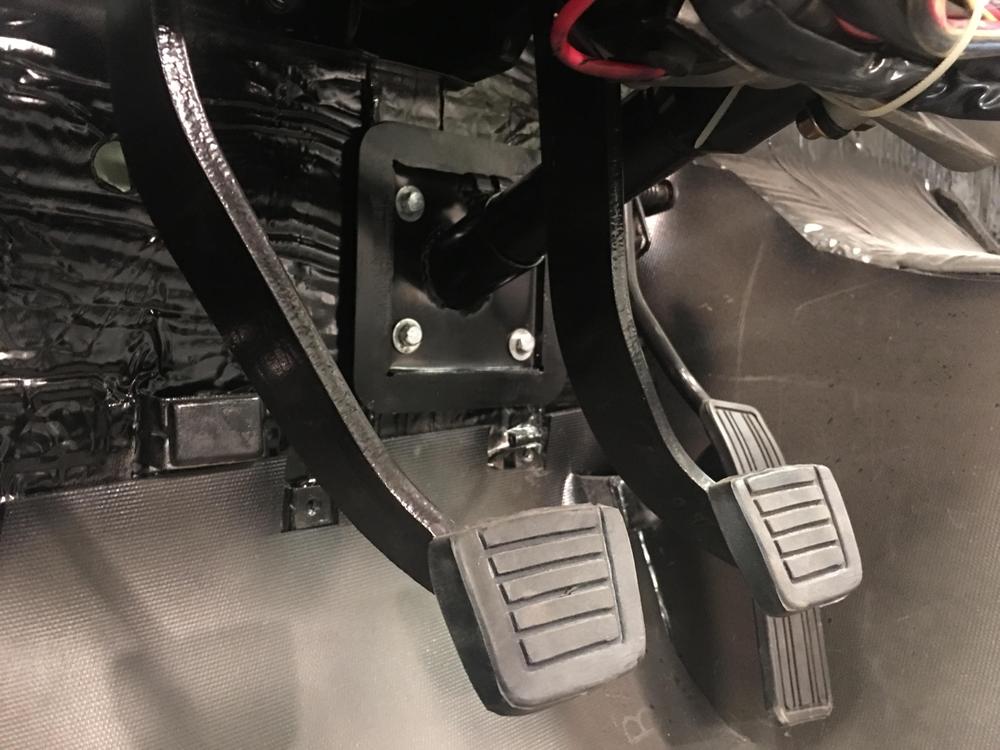

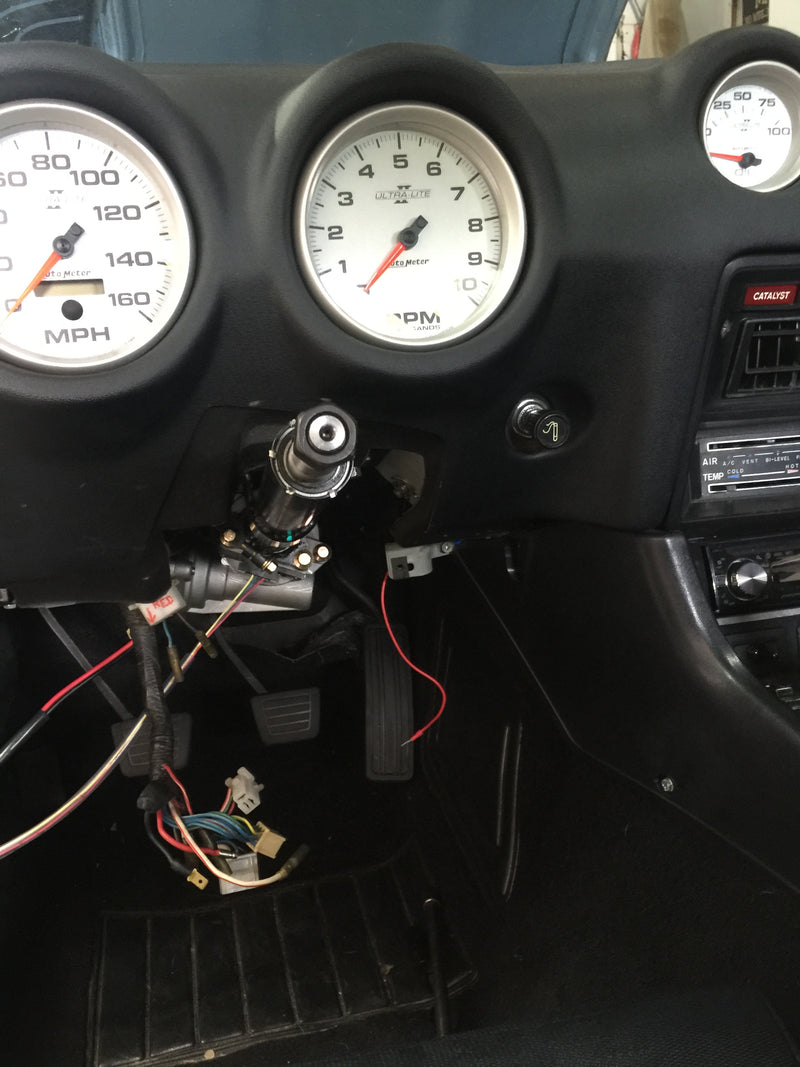

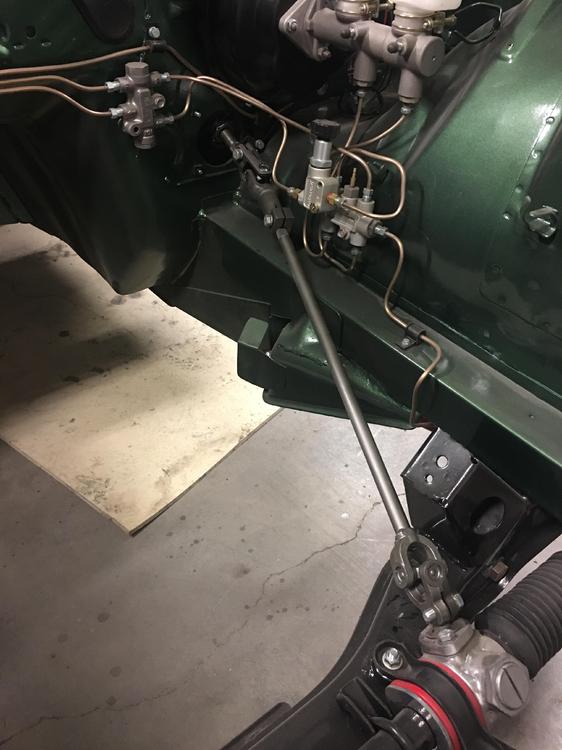

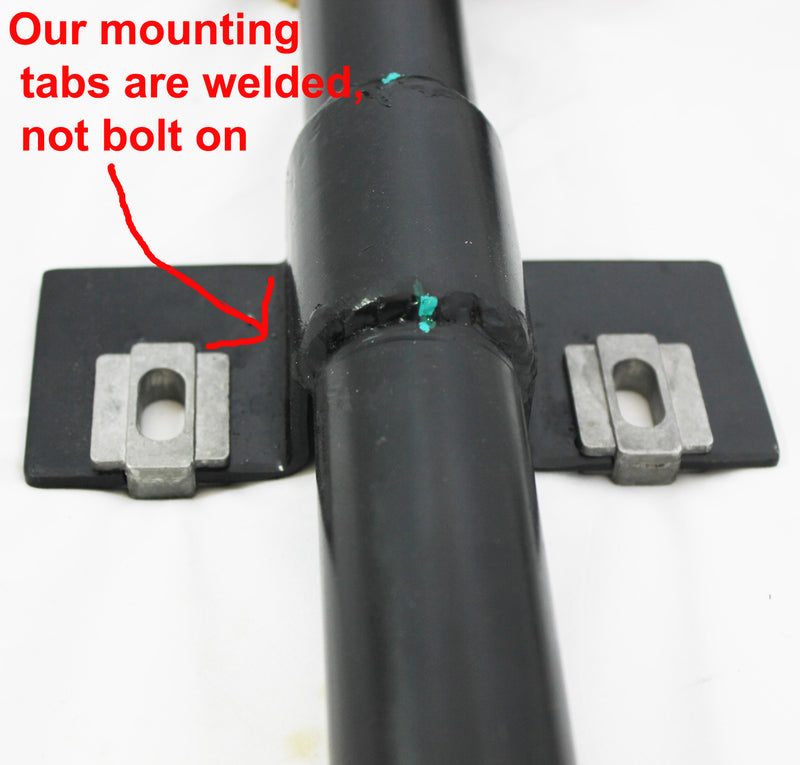

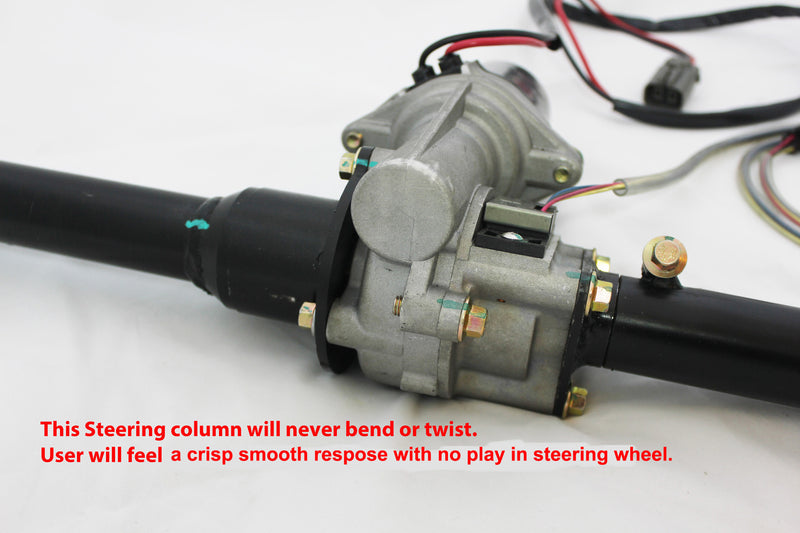

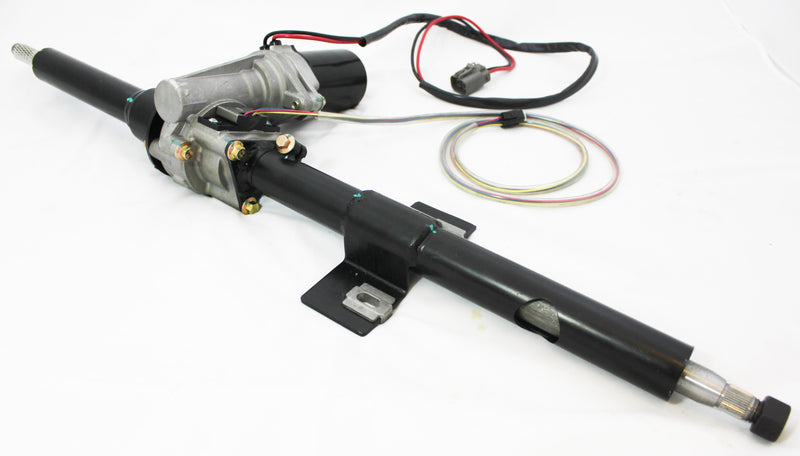

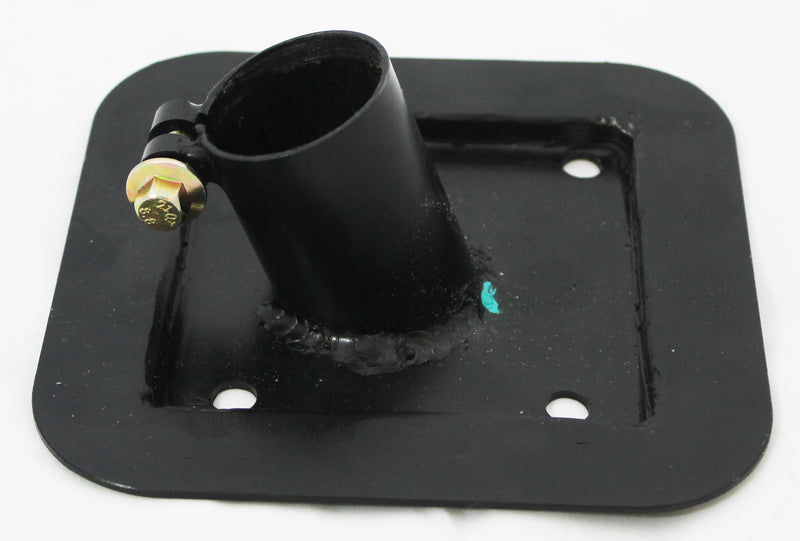

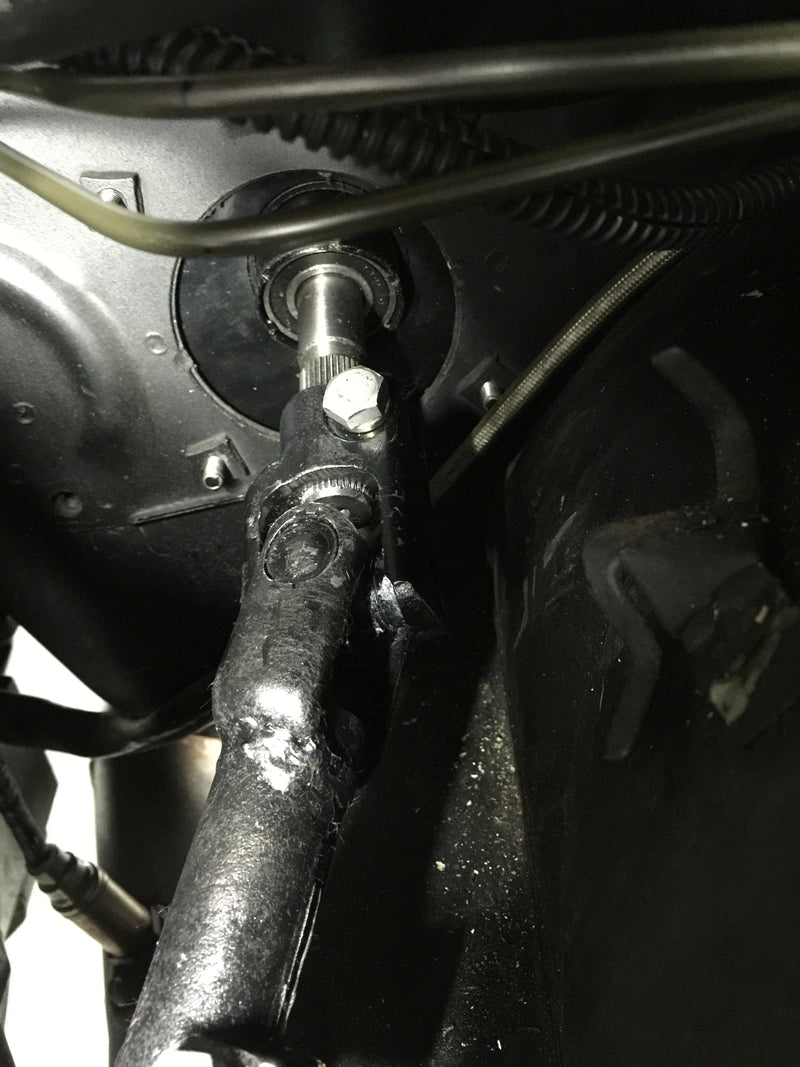

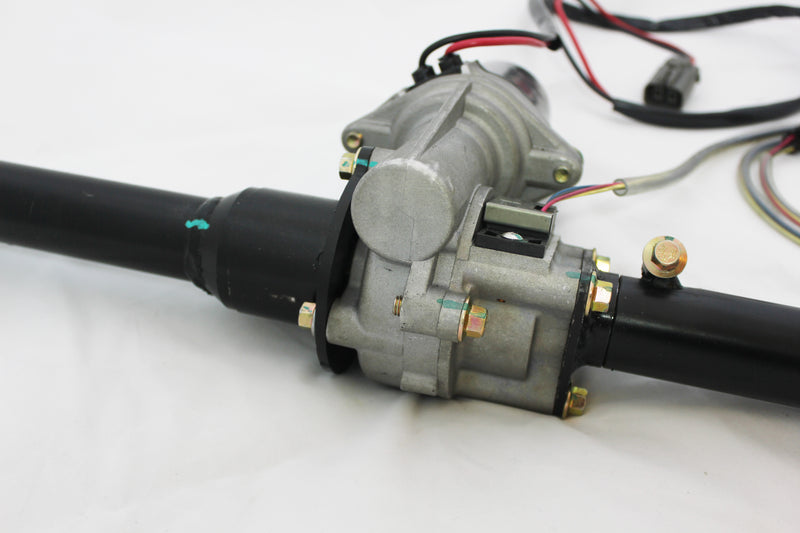

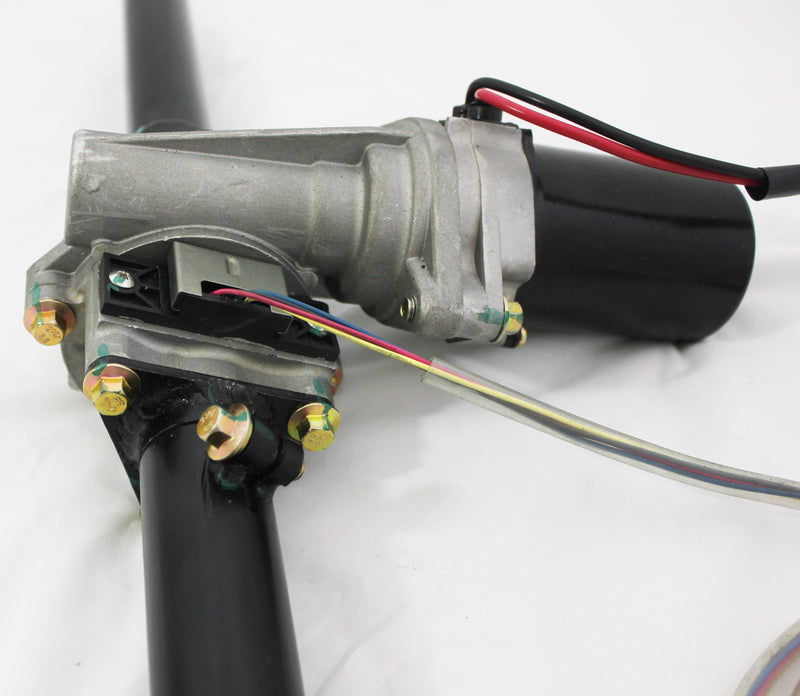

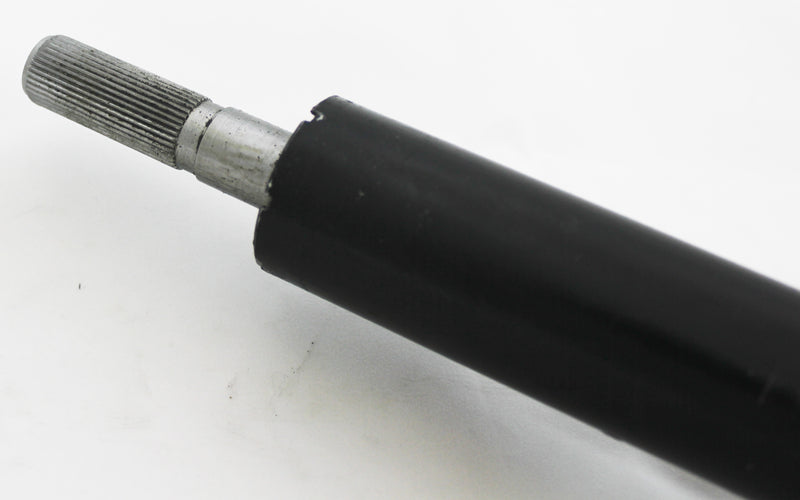

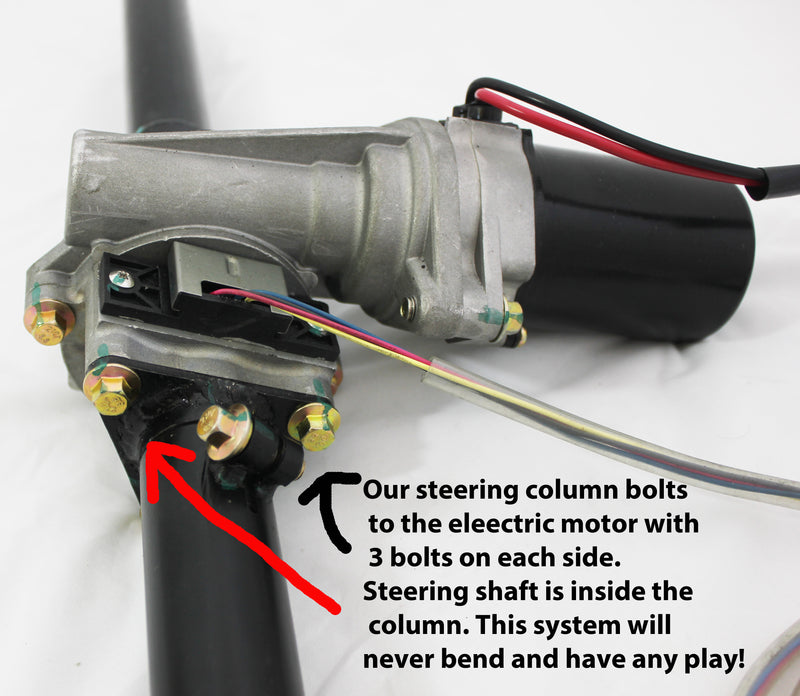

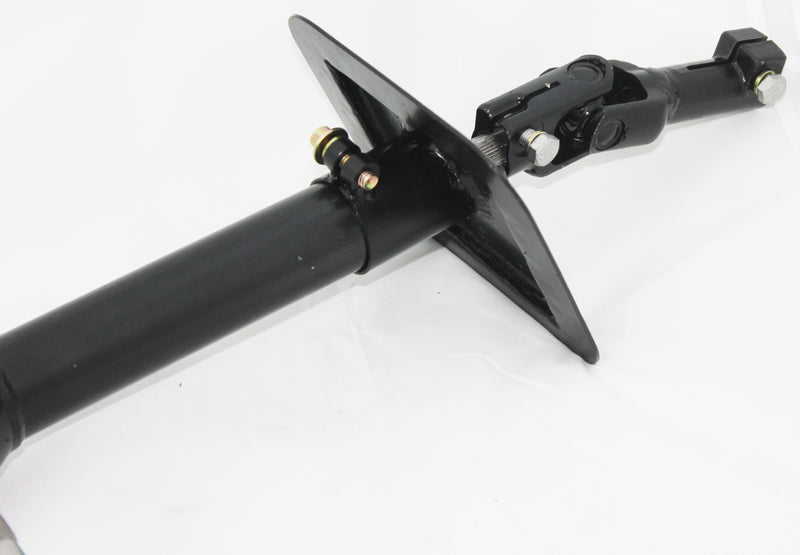

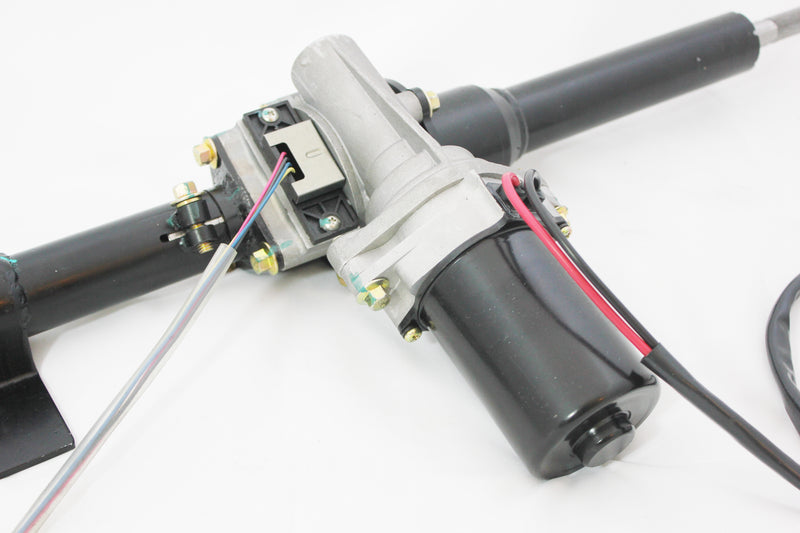

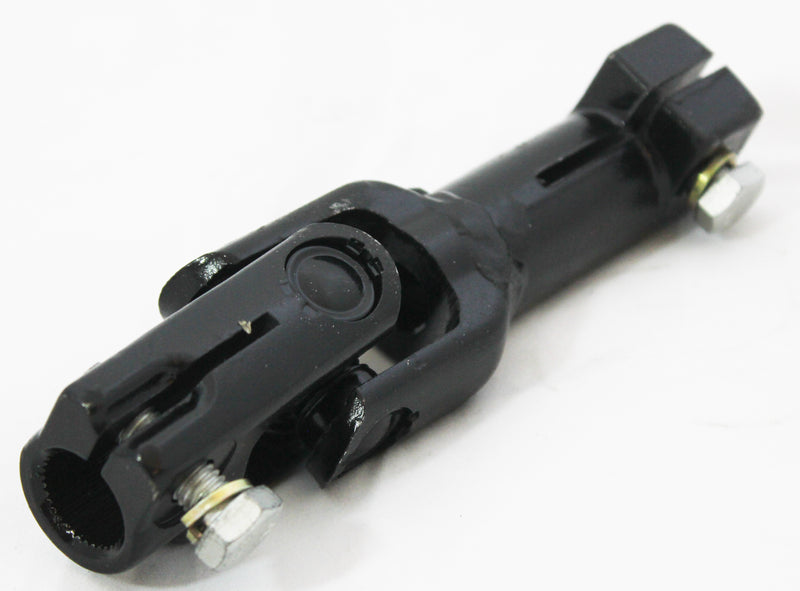

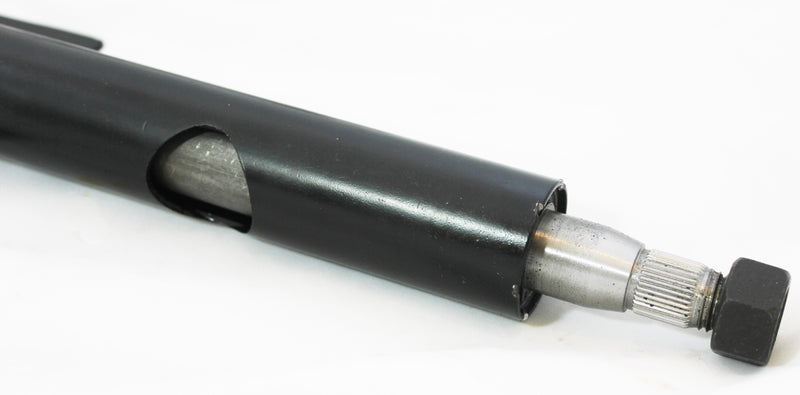

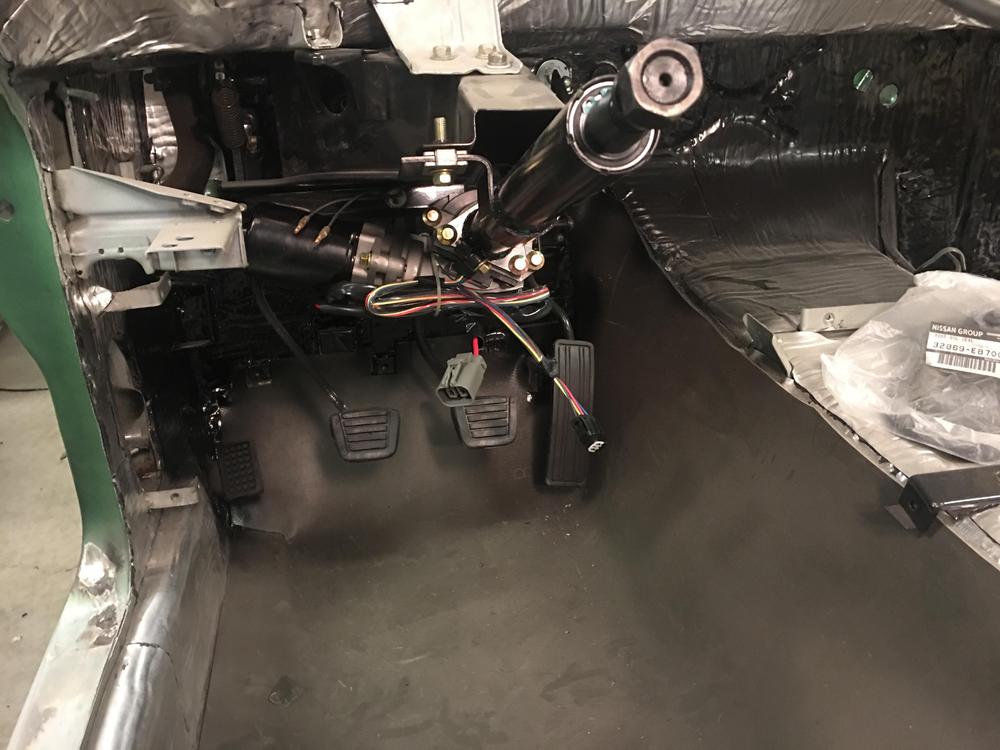

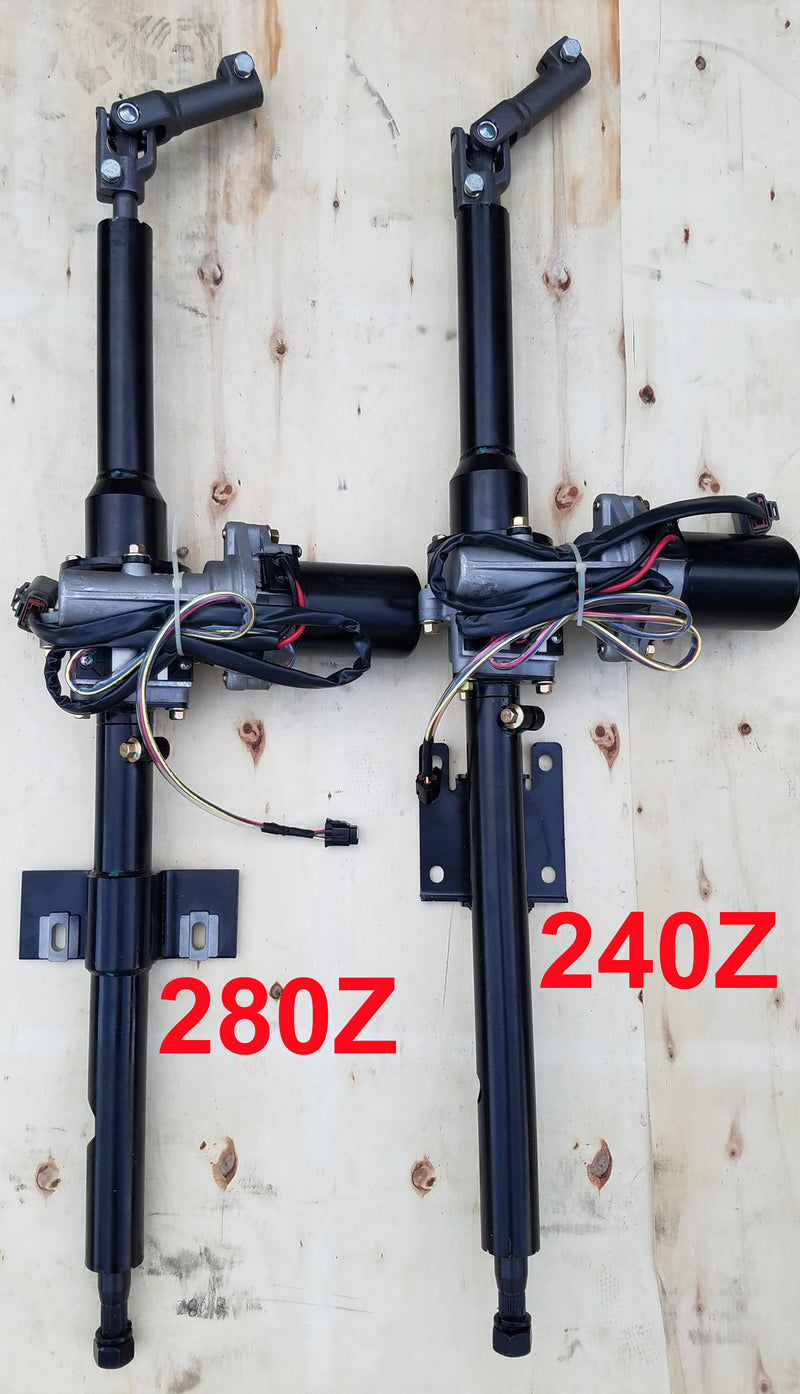

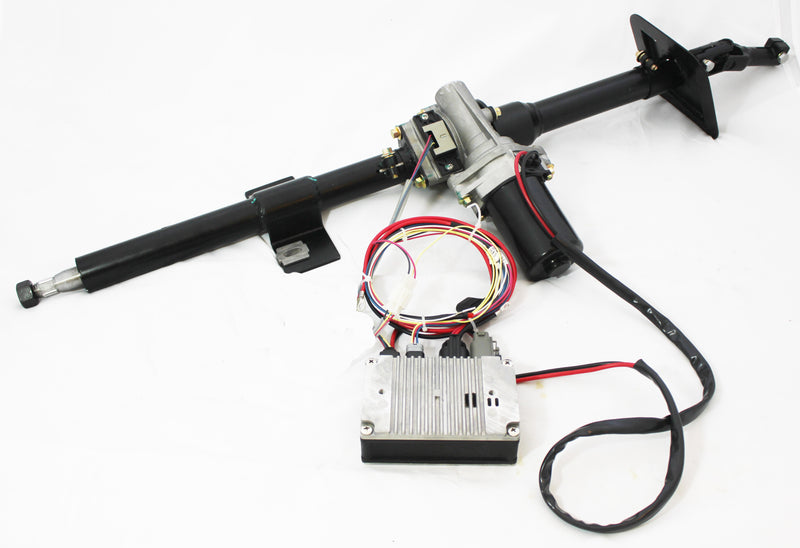

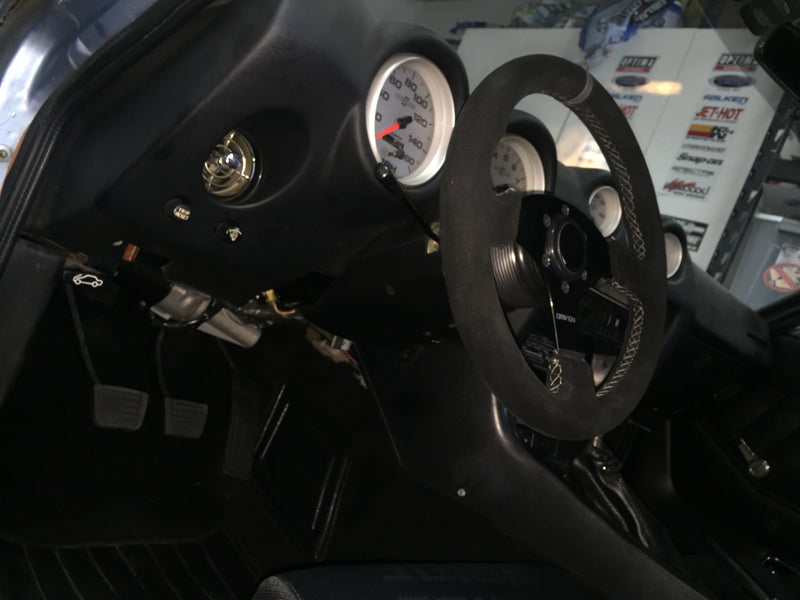

We designed a brand new custom-made steering column with the same dimensions as the stock unit. We integrated an electric motor to assist the driver. The steering column consists entirely of brand-new parts: new bearings, new steering shaft, new steering tube, with all new threads and splines. It connects to your stock steering wheel. The EPS column bolts directly to the firewall in the stock location. It will also mount to the dashboard in the original location. The unit bolts onto your stock steering shaft in the engine bay before the bushing.

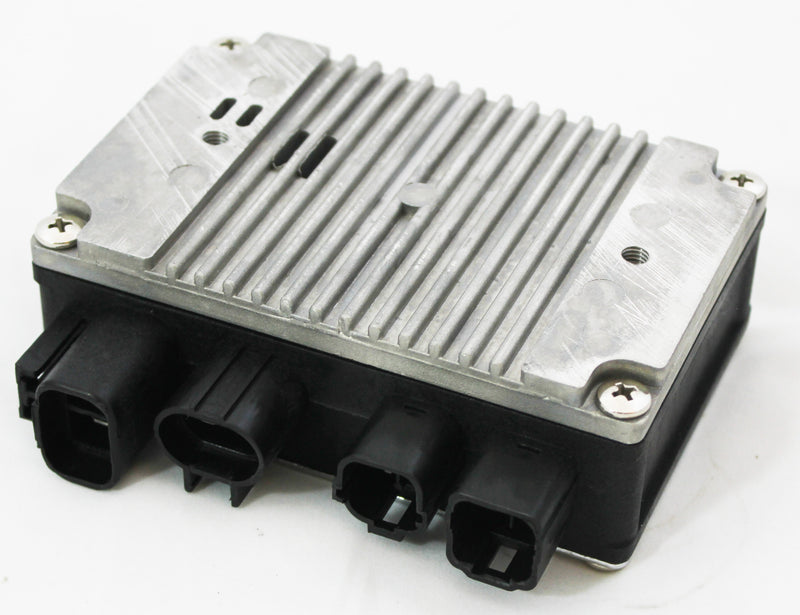

Electric power steering is more quiet and smooth. The steering response is Instant and as powerful as any hydraulic power steering system. Our system has an ECU computer that controls the electric motor. It tells the motor to assist more at lower speeds, less at higher ones.
speed sensitive steering: Our Poewer steering kit will sence your cars speed and self adjust the amount of steering assistance. 100% of OEM cars come with speed sensitive power steering. There is no adjustable knob that needs adjusting (like other inferior EPS kits). We offer a GPS speed sensor that tells the steering kit how fast your traveling. the second option to sence speed is If you have an aftermarket engine/ ECU with electronic speed signal, just connect the speed signal wire to the EPS system.

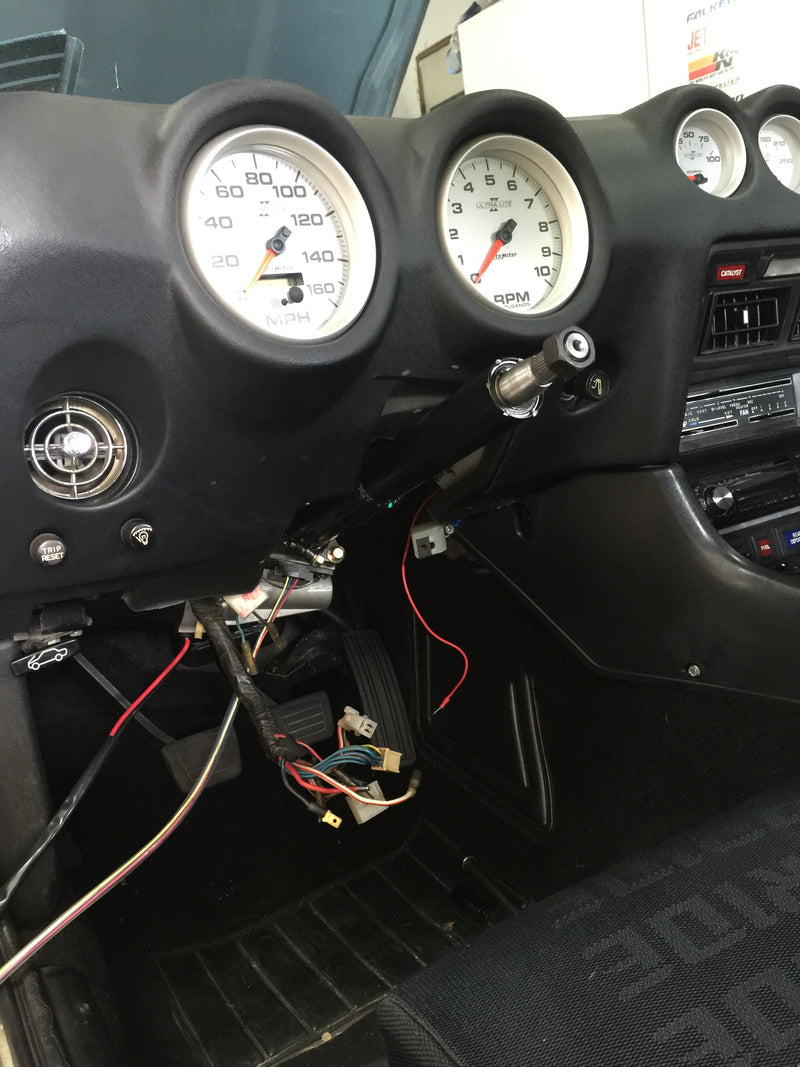

Installation is easy, and only takes 1-2 hours! The result leaves plenty of leg room; the motor does not get in the way.
We have put this electronic power steering system to the ultimate test. It is currently installed in our friend David's 280z equipped with a LS-3 6.2L V-8 motor and a T-56 6 speed trans. He uses the car for autocross and track days and also daily drives it. His front tires are 315 wide! He can turn the wheel effortlessly with one hand! [citation needed – maybe a Youtube video]
Here's what David had to say about his experience with our electric power steering (EPS) kit
"I've installed the system and was able to use it at Pikes Peak International Raceway at the Ultimate Street Car Challenge where I put it through some very tough tests. Speed stop consisted of a long straight away w a 180 turn off camber with full driver front compression and the steering didn't miss a beat. It went thru that and the slalom directly following that with no issues.
So I only used the yellow wire which I hooked up directly to my speedo signal wire off my ecu. When I power on the car I actually have steering at that moment without even being started. This is a nice feature because when I have to move the Z in the garage or at the track by hand it makes it so easy. The autocross and the track were no issue with the steering. I was doing about 140-150 around turn 1 and 2 of the raceway like NASCAR and no issues. Very responsive and quick ”
1. What did you think of the EPS system looks and quality? Pleas list anything that did not look good and discuss in more detail.
"The EPS system look and quality was very nice. When the package arrived everything is well wrapped, taped, tied down and nothing was broken, misplaced or anything. Once I open the box the parts were all painted, super clean and very presentable. Nothing seemed to disappoint at first glance or seem to be JUST THROWN in. Great job there.
2. What was the installation process like? Describe your experience connecting the speed sensor wires?
The Install was very easy. I think it took longer to remove my old stuff then to install the new unit. The speed sensor on my setup was a little different because of my LS engine swap. The signal wire was connected directly to the speed sensor off of my ECU. The unit now works at a stand still and in motion which is very convenient. All the hardware, plate, knuckle and ecu's are clean and easy to install with included mounting brackets.
3. Did you have to grind, weld, or drill anything?
I didn't have to do anything that required modifications.
4. How many hours did it take to install?
1-2 hours.
5. Did you have to buy any other parts to complete the installation that you think should have been included in the kit?
Everything in the kit was perfect
6. What is the current car setup?
75 280z Ls3,T56
Describe your previous EPS steering experience? Pre Steering experience was with the old steering shaft that had some play and was starting to wear. It was tight but you could definitely see that it was time. No power steering with 315 tires can be difficult at times.
7. How is the parallel parking experience before and after the EPS system was installed?
No problem and super easy to turn the wheel
8. How is it driving on roads, making right and left turns, before and after the EPS system?
No issues while driving. Very responsive and reacts as you react. No resistance either. Feels great!
9. How was the Auto x and track experience before and after the EPS system?
At the autox which is what I mainly do with the Z this unit makes the Z fly through the corners with ease. I feel the road the same and the electric steering reacts smoothly and with finesse. I recently attended a Pikes Peak International Raceway event and while doing about 140-150mph around turn 1 and 2 the steering felt great with no delay or issues. Highly recommend for those that autox or track race.
10. After using the kit for 3 months, what do you think of its reliability?
I am really in love with my Z now. The steering makes it that much easier to drive. Sure I dealt with the NO Power Steering for 2 years but this is a dream to drive. It doesn't take two hands to steer the car and it is totally perfect for every day driving. I don't see any issues with parts on this setup. Bearings seem strong, the electric drive unit doesn't seem to get hot and the steering shaft is very crisp as far as feeling.
More reviews

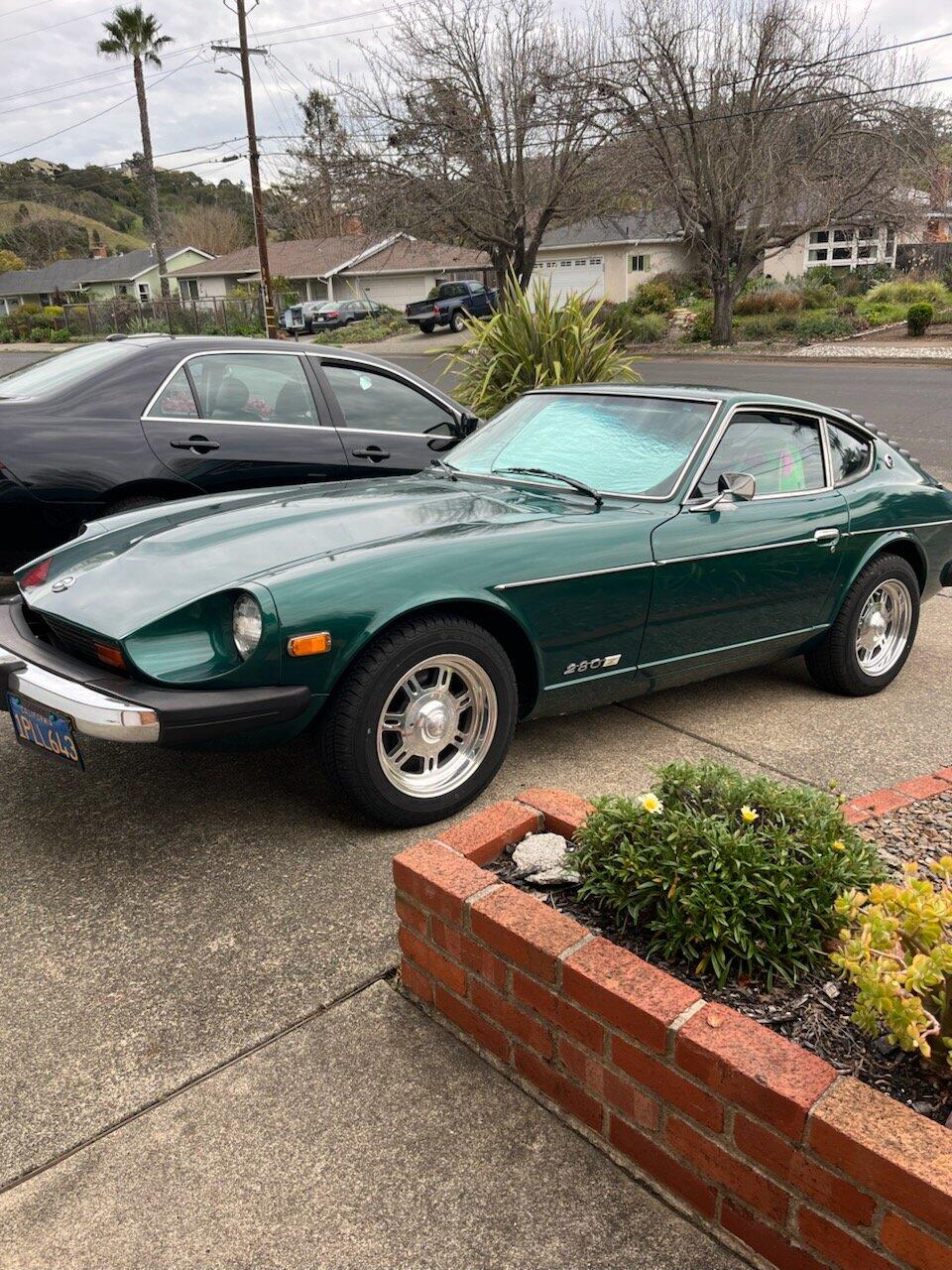

I also purchased the electric power steering kit. I absolutely love it!!! It has totally transformed the way I enjoy the car. Before installing your kit low speed maneuvering in tight spaces was NOT FUN!!! Large tires & small steering wheel turned driving into a wrestling match.

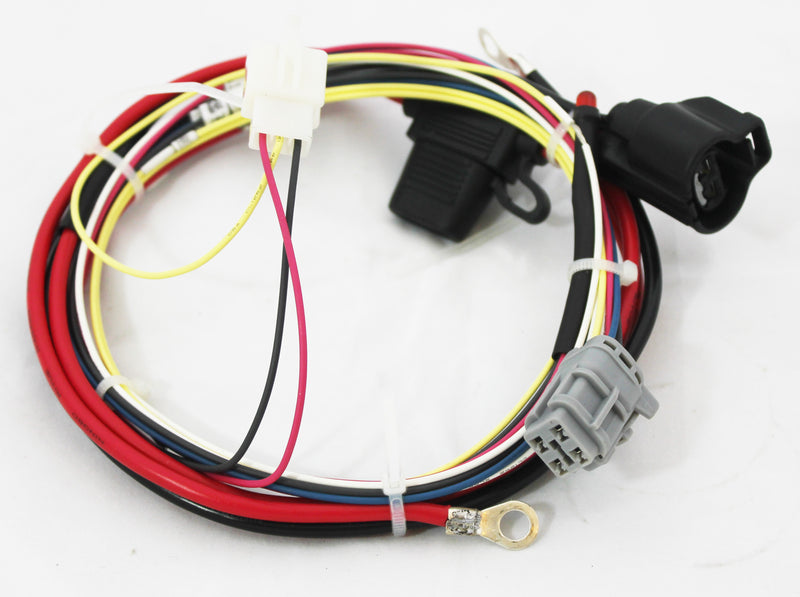

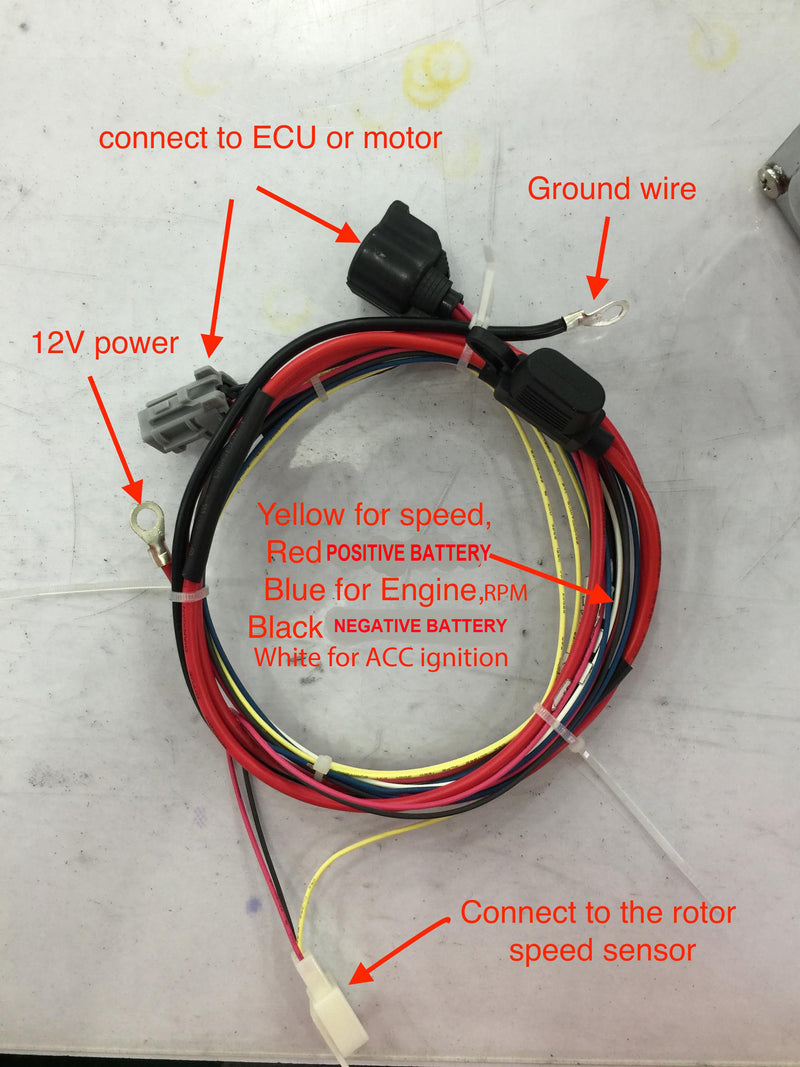

Installation - Connect only 5 wires

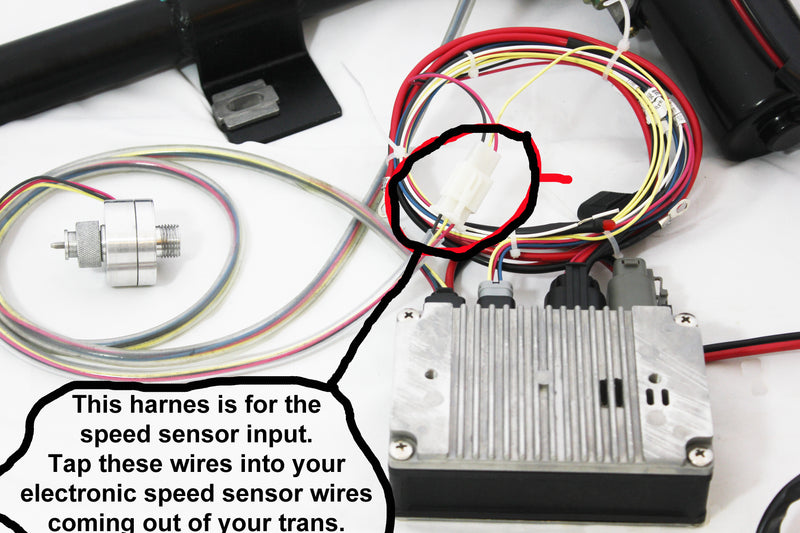

Yellow - Speed sensor 1. use our optional GPS speed sensor . 2. For people with an engine swap, you will need to tap the yellow wire into your transmissions speed sensor wire. This wire pulses positive as the car moves faster.
Red - directly to battery positive.
Black - ground, negative battery
Blue - engine RPM
White - ACC ignition switched power

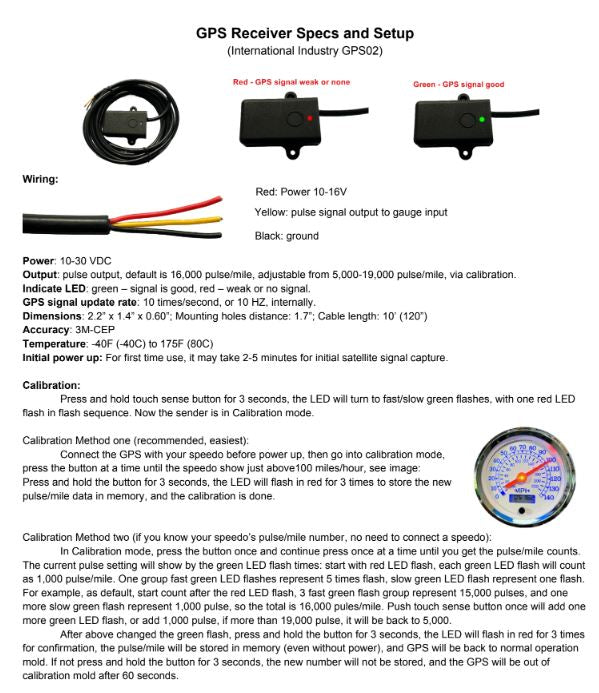

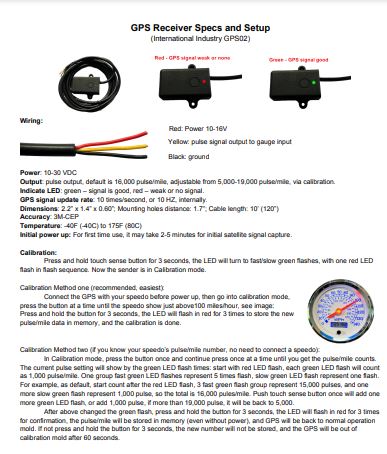

We have just released our new improved speed sensor. This sensor works off GPS, you do not need to connect it to the back of the stock speedometer! Just mount it on the dashboard, run power, and run the signal wire to our yellow wire on the wire harness. If you are using a non-OEM transmission with a speed sensor then you do not need this GPS sensor.
Connect speed sensor wires as follows:
Red power cable to red cable
Black ground cable to black cable
Cut off white wire harness..
what does the red light on wire harness indicate?:
Red light flashing: self-test
The red light is always on: there may be a fault
read:
Watch;
https://www.youtube.com/shorts/Z_BgnajWpYE
https://youtu.be/E7qb_4VmyqI
motor is 220W, rated voltage is 12V, rated current is 30A

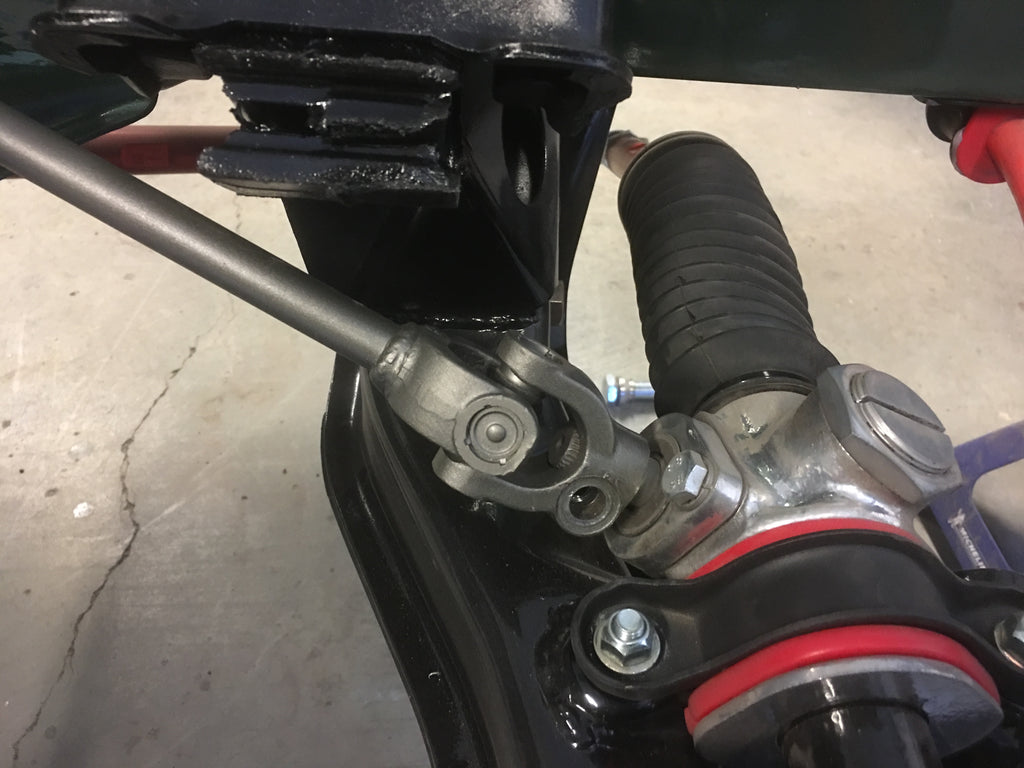

Note: If your steering rod is hitting your engine mount you might need to loosen the 2 bushing mounts that hold your rack and pinion. Then rotate the rack until the steering rod does not hit the engine mount and tighten the mounts in that position. This should fix any clearance issues. This only applies to steering racks that have been rebuilt and may need adjusting to maintain the factory angle at the ujoint. This kit works on right hand RHD cars.
There's no warranty on this power steering kit or any of its parts. Be extremely careful when connecting the wires. If you connect a wire to the wrong place the will burn out and need replacement. Professional installation recommended.
