COIL OVER SUSPENSION KIT FOR DATSUN 240Z 260Z 280Z 32 STEP DAMPER COILOVERS NISSAN 70-78

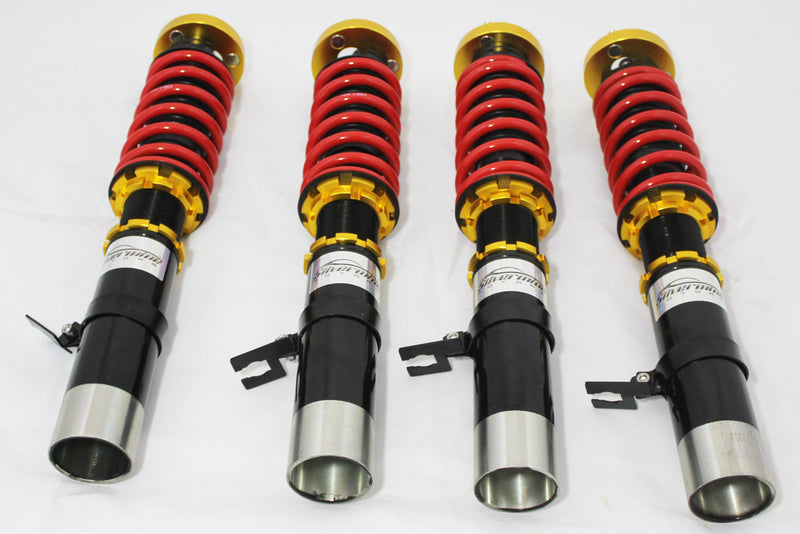

Complete Coilover packages come with Shocks, coil springs, camber plates all in 1! After a decade of track and canyon testing, we have formulated a winning setup for the 240Z - 280Z suspension. This Coilover kit will make your S30 handle turns with confidence and predictability. The linear damper can be adjusted to be stiff for track and auto-x, but also can be turned down to be comfortable on bumpy canyon roads.
The newest most up to date technology put into these coilovers. 32 step adjustment of damper! Adjustable ride height 1-3 inches lower! Adjustable camber plates Front and rear! Increased travel compared to stock strut and coilover kits and sectioned struts. preloaded spring, unlike old style coil overs.
Linear Mono-Tube, Top Mount, 32 Step Damper & Ride Height Adjustable Street Sport Spring Rate: Front 4KG/ Rear 5KG (225 LB. front, and 280 LB. rear) With Pillow Ball Mount and Camber Plates.

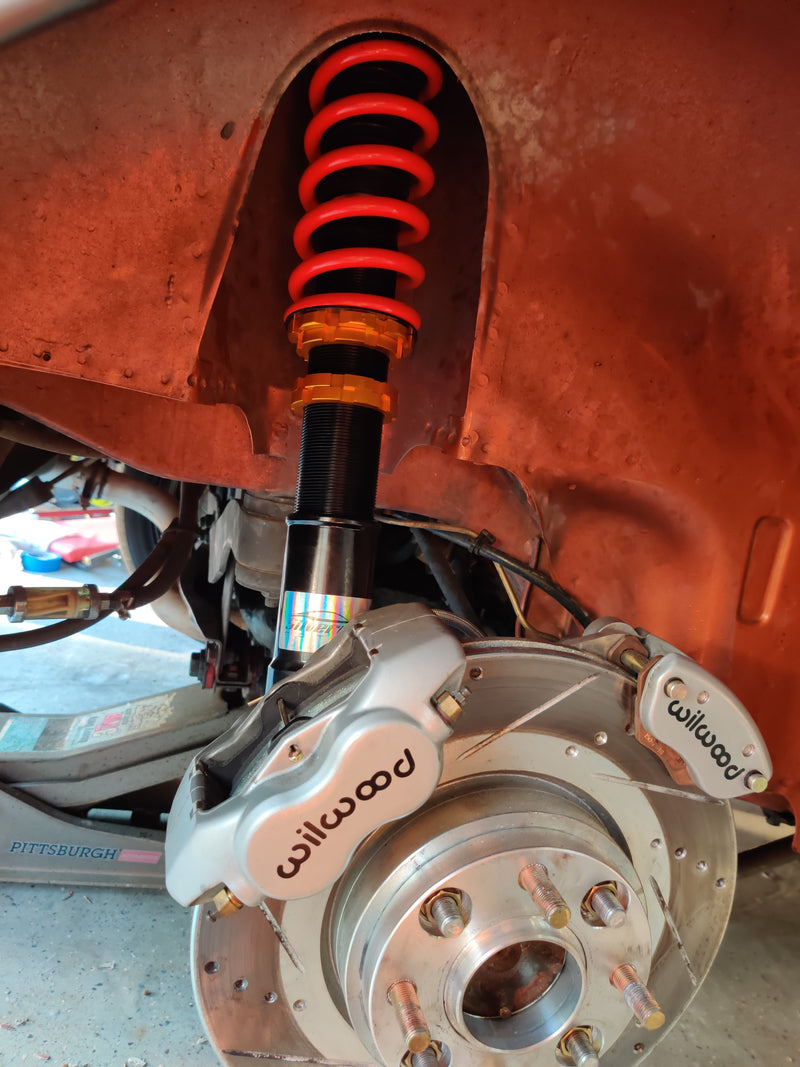

How to install: Cut and Weld Factory Spindles. Each Bottom Of the Coilover Has Open Tube or Sleeve, Cut Factory shock tube (leave a 2"-2.25" nub of the old shock tube), slide the New Coilover over the old shock tube 2" nub until it hits the base and then weld it. Please Make Sure You Understand What Needs To Be Done. Otherwise Please DO NOT Buy. 240Z-280Z uses softer Spring Rate In the Front and Heavier Spring Rate In The Rear.
Highlights:
- 32 Step linear Damper Adjustable - Precise control damper valve, You can make them extremely soft on level 1 and extremely hard on level 33. - Expansion/Suppression of shock adjustment - Height and low adjustable, Superb road handling qualities and great looks - Single Cylinder, or Mono-Tube Design, with Larger cylinder and piston design, advances driving stability and dexterity - ARTC Durability Test & Salt Spray Fog Test, Guaranteed with Top Quality Material and Long Durability
Shock tube diameter is 22MM. Thicker than other Coilover kits. Rear shock total length is 12inch.
Note: Longer spring, shock, and weld on metal tube is for the rear. Short spring, shock, and weld on tube is for the front.
replacement shocks are $200 each special order. Custom valving available for $500 extra. Contact us if interested.
Spring inside diameter is 63mm
Rear spring is 8.55 inch long. Rear shock is 11.75" long
Front spring is 7 inch long. Front shocks are 9.5" long
The thread size for the Weldon shock tube is M50 X2.0
If you need extended studs to hold your strut brace use these
