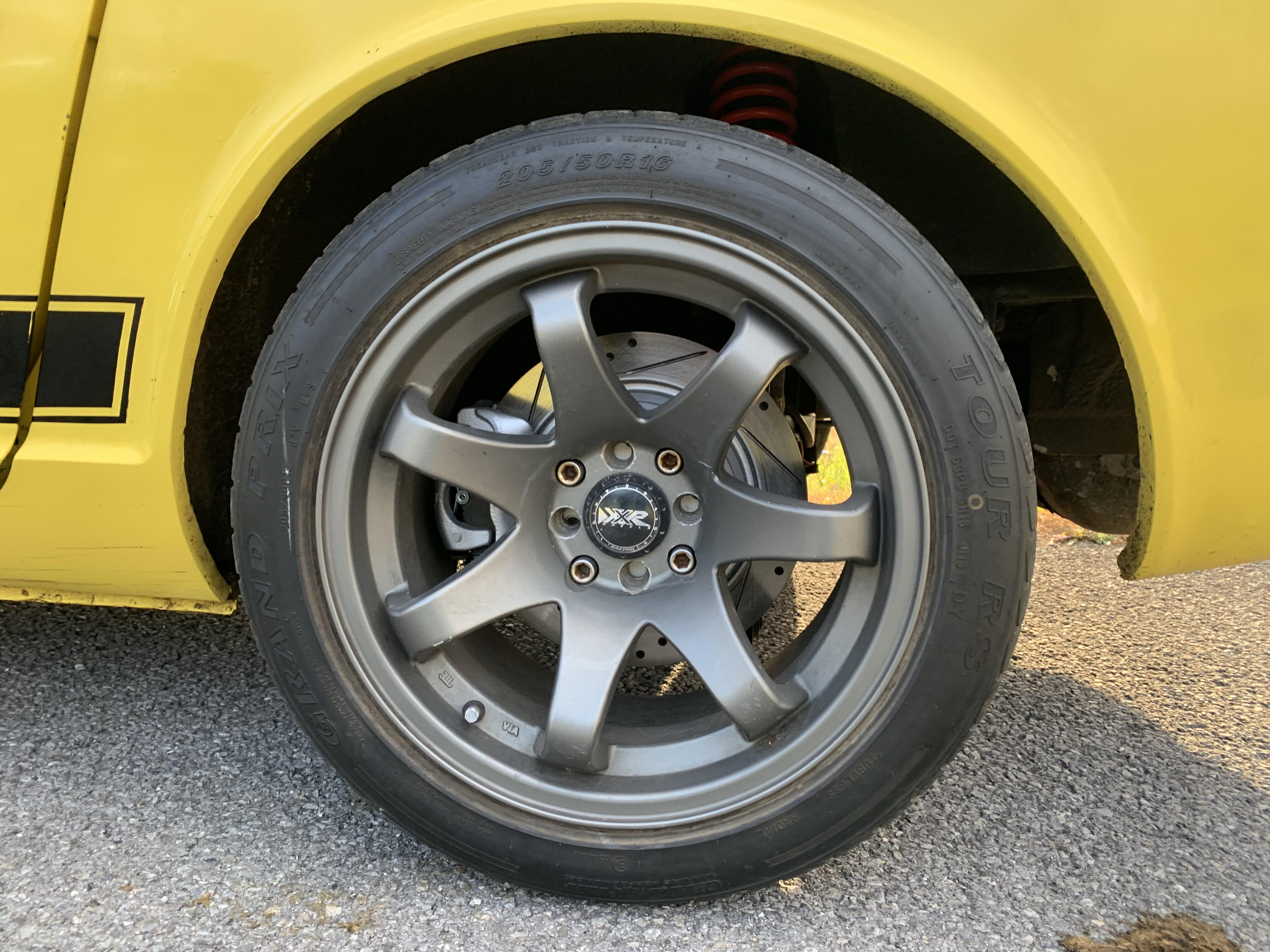

This kit is the same as the stage 4 rear except we used a deeper rotor to push back the caliper. This kit fits all 15 ich wheels! The brackets are much thicker thus the price increase.
This kit includes:

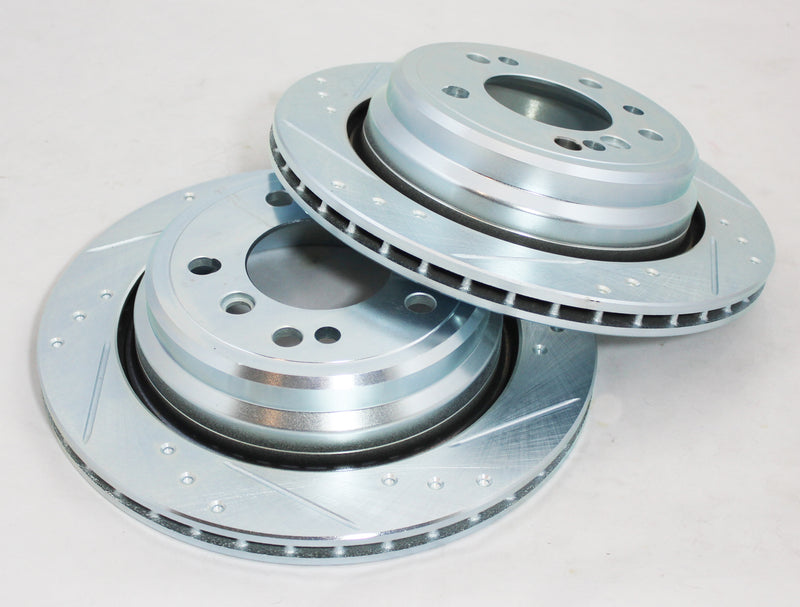

1. Pair of new 11.8 inch CNC drilled, slotted, vented, Zink plated, and machine balanced rotors.

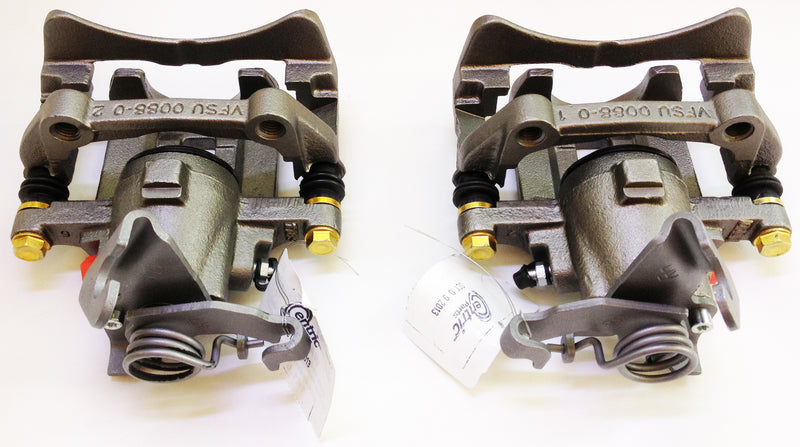

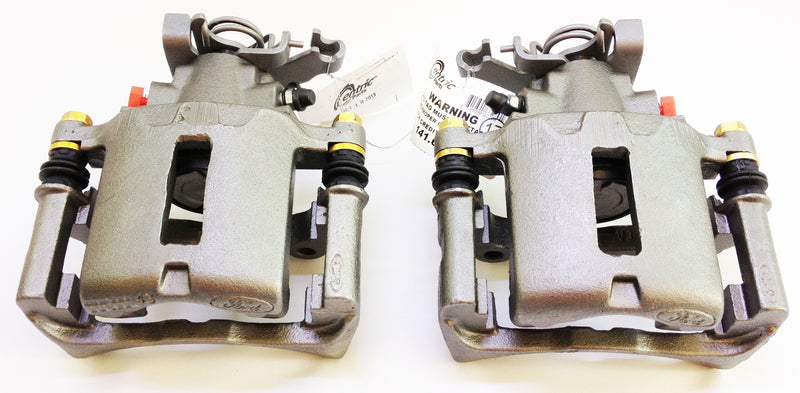

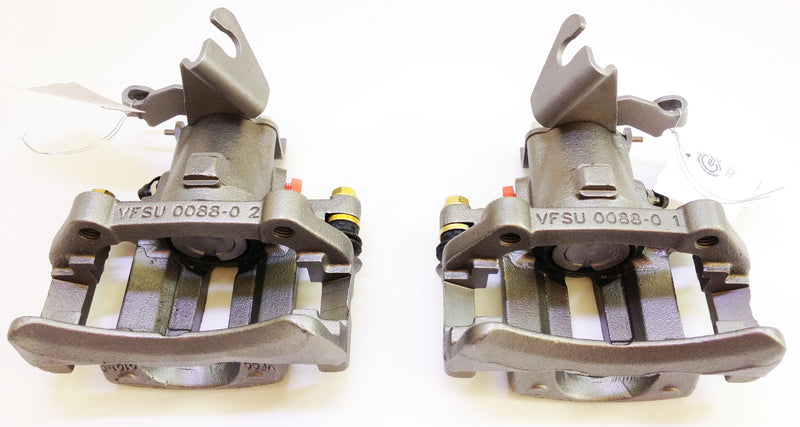

2. Pair of Enormous1.6 inch (43mm) single piston calipers with e-brake function.

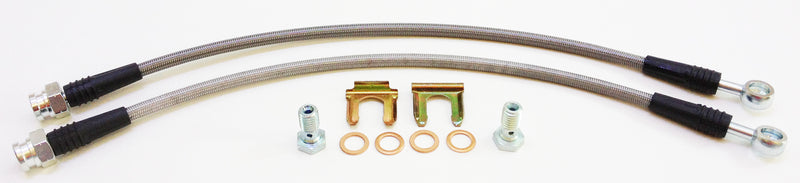

3. DOT approved custom fabricated steel braided brake lines.

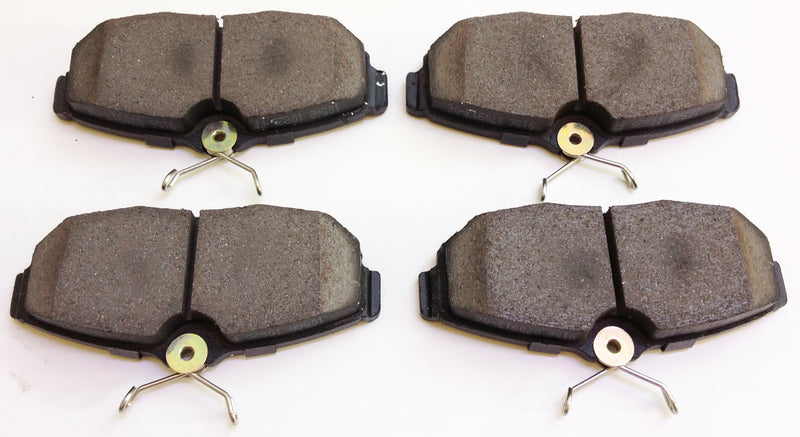

4. Ceramic brake pads

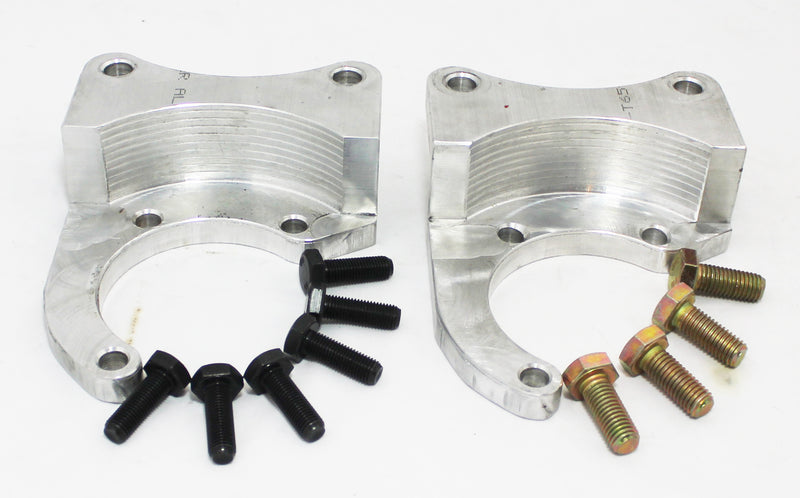

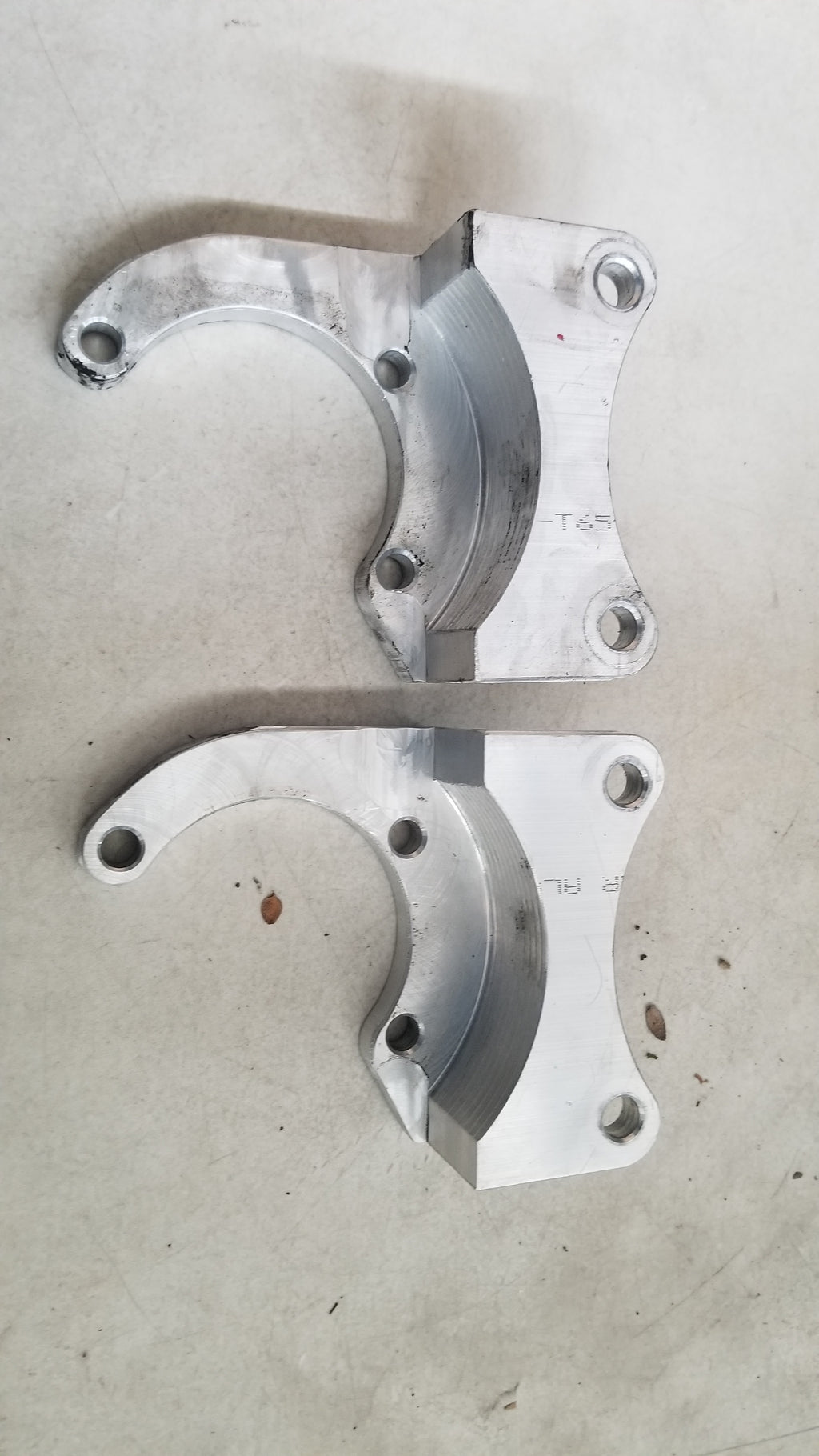

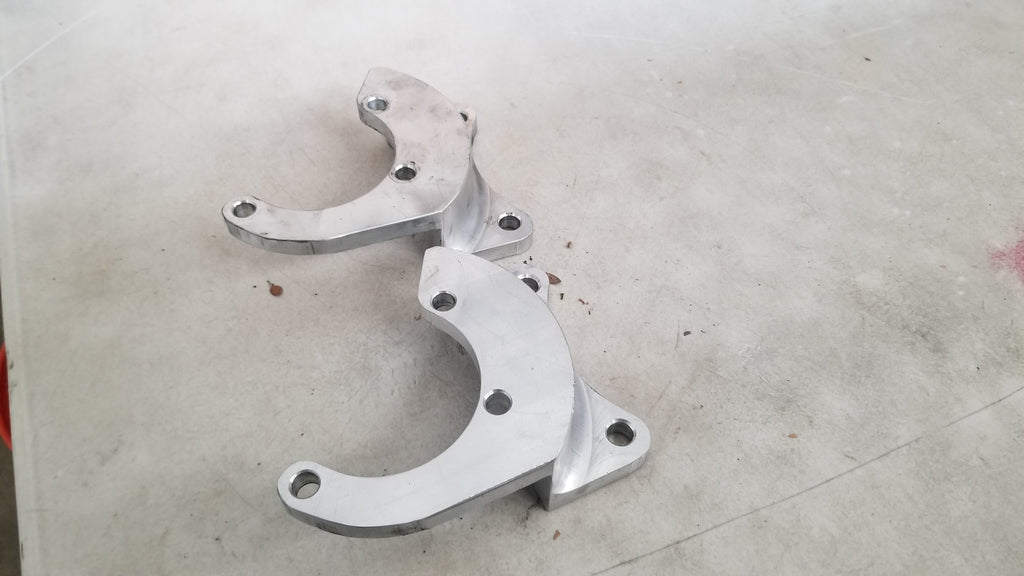

5. One pair of custom fabricated 1018 alloy brackets.

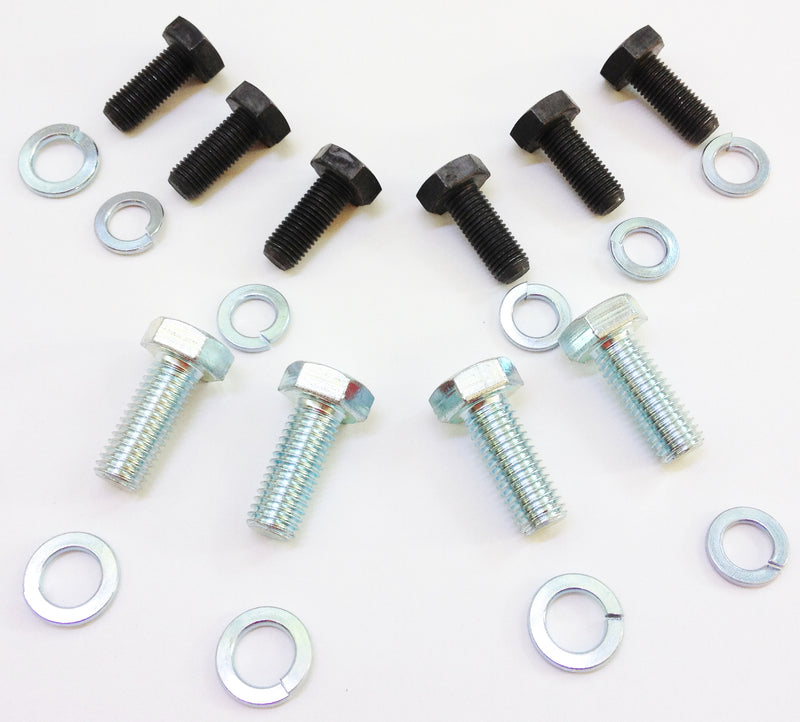

6. All the needed hardware.
7. Installation instructions.
As you can see this is a complete brake kit. There are no other parts needed to complete the installation. There is currently no other brake kit with e-brake function on the market that has bigger piston calipers than this brake kit. The calipers are the strongest calipers in any rear brake kit available with e-brake for our Z cars. They feature 1.6 inch pistons (43mm) and an amazingly strong e-brake function. These calipers are also available in many local auto parts stores so replacing them is not a problem. They originally came off a car with 500 hp from the factory. So you can believe they will stop your light z car with whip lashing power! The pair of Drilled, Slotted, Vented, machine balanced, and Zink plated rotors are professionally built with precision C.N.C. machines. They are Zink plated which prevents them from rusting. The rotors are also vented which will greatly lower the chances of brake fade under extreme driving conditions. The steel braided brake lines are custom made to fit this brake kit for easy installation. They are also government DOT approved just like the stock brake lines that come on new cars from the factory today, except that they are much much stronger. So you can believe they will not have any safety problems. The custom fabricated brackets are made of 6061 Aluminum. They will never rust or corrode.The ceramic brake pads are built by Posi Quiet. They are very quiet and smooth. If you don't want the brake pads you can subtract $20 from the final price. I can also get you different types of pads if you email me what you're looking for.
This kit does require 15 inch wheels.

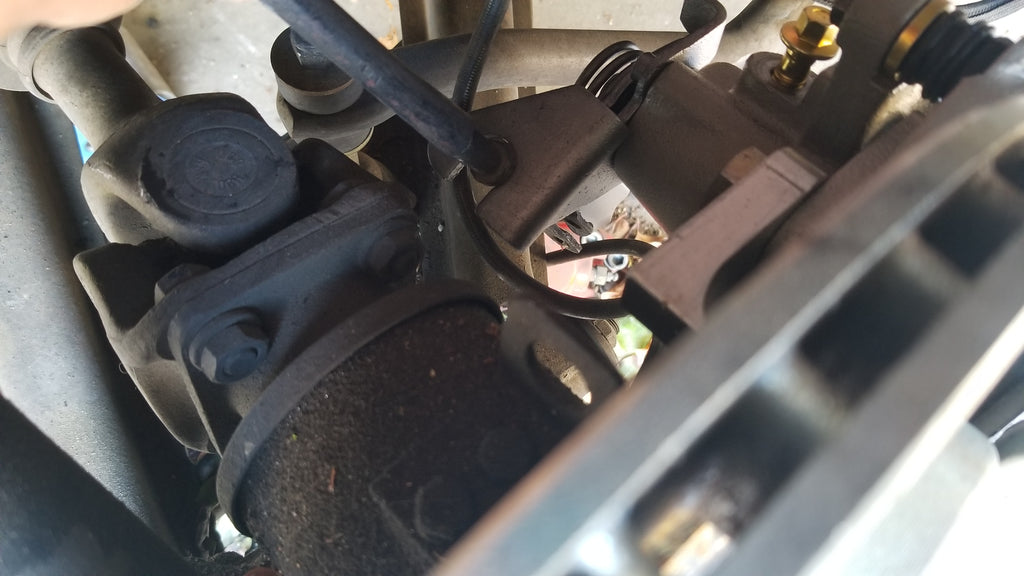

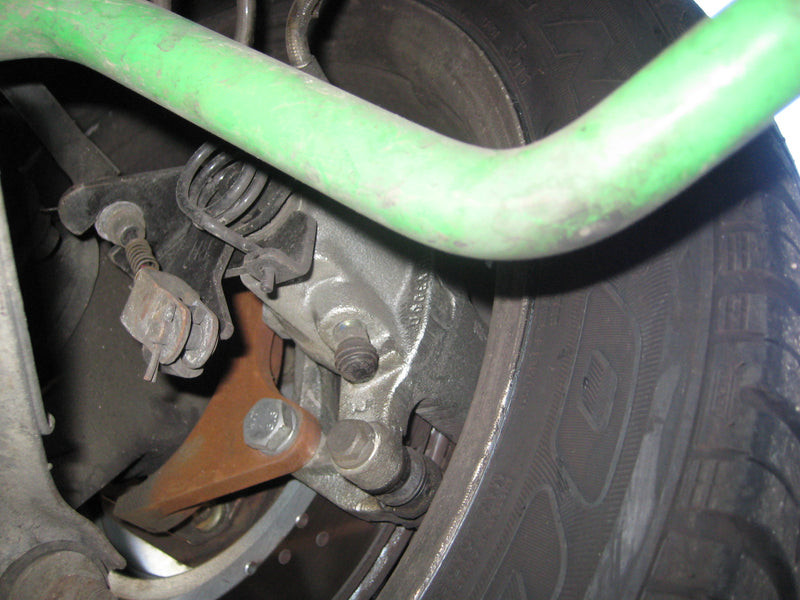

280z e-brake cable will hook up to the supplied caliper. 240z (pictures) will need to make cable diameter larger so it does not fall through the caliper e-brake holding bracket. You will need to re-use the original metal "u" shaped connection bracket with c-clip from the e-bake cable to the drum e-brake lever. You will use that part to connect to the new caliper e-brake lever.
This kit will not work with cv axle conversion weld on spacers with 300zx cv axles. You will have the e-brake hit the spacer.
Installation requires you to either:
1. Remove your stub axels.
2. Or cut of your stock drum brake backing plate.

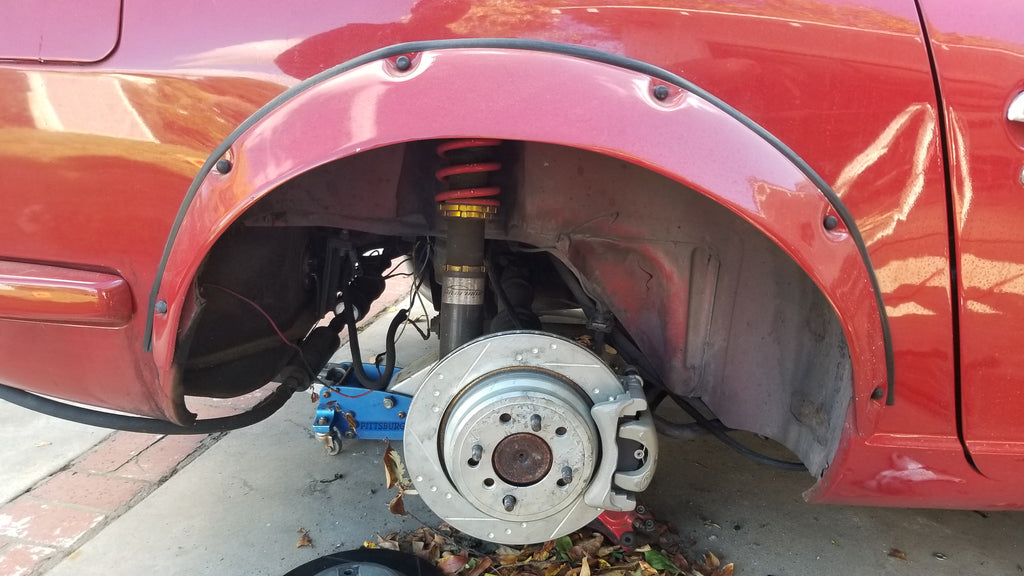

One good thing about removing your stub axels is that you get to change your old wheel bearings, which I strongly recommend you do, unless you already have. I personally have this brake kit on my car and let me tell you, I can give my unexpecting passengers whip lash when I press on my brakes. The car stops on the dime, even when I'm going well over 100 miles per hour. I use to have the maxima caliper brake kit with the 300zx rotors and it is nowhere near as strong as this kit.
4. E-brake hook-up: 240z cables will need some modification to connect e-brake, 280z cable will work with no mods.
5. Right side caliper is mounted on the left side and vise versa. The entire assembly will need to be bleed in your lap, then mounted onto car. Read installation directions before ordering.
Note:
1. For you people who have re drilled you stub axels to a 5x4.5 lug pattern this brake kit should work for your car as well.
2. You should also think about using a bigger master cylinder when you buy this kit, the added piston area will use more brake fluid than your stock brakes.
3. Calipers might not be matching in color. Some might be shiny silver and some might come dark grey. Just paint them or order red color.
4. Stock e-brake cable will work, but you will need to modify the calipers cable holding arm to hold the cable in place.
5. Attention 240Z owners. You will need to add a washer to the end of your e-brake cable so it does not fall through the caliper cable holding arm. This is because the 240Z cable has the smaller outside diameter than the 260Z and 280Z cable.
download and print installation instructions
http://silverminemotors.com/blog/?p=82
This kt was featured and installed on "In the shop with Emily"
