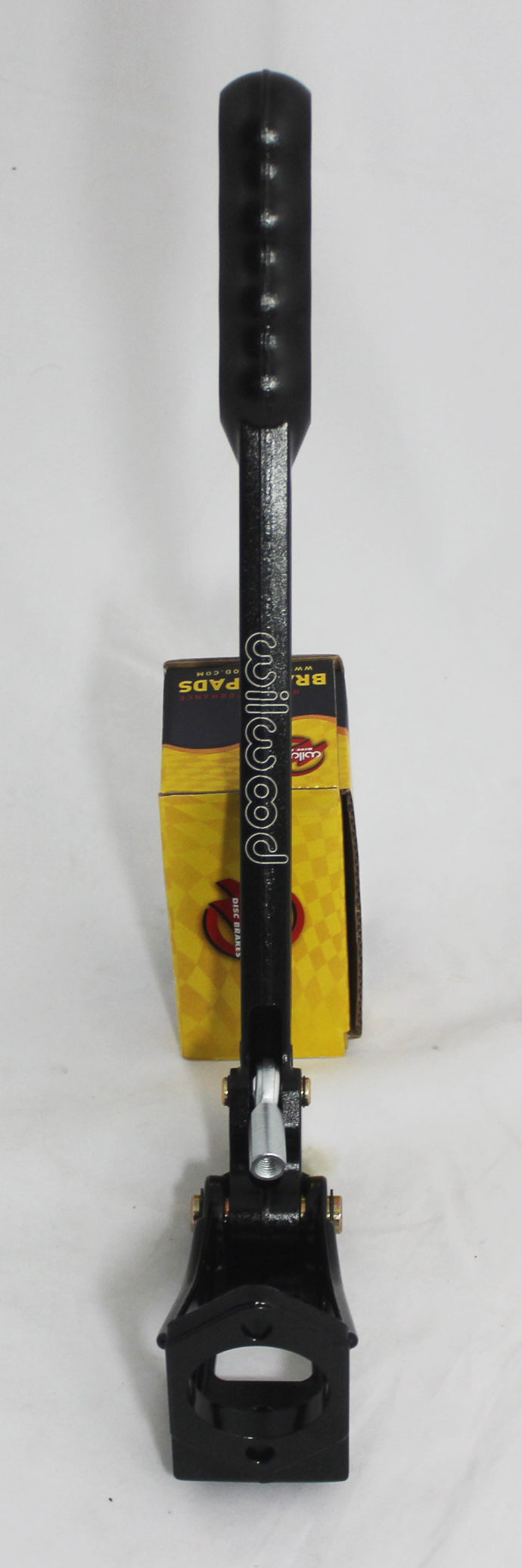

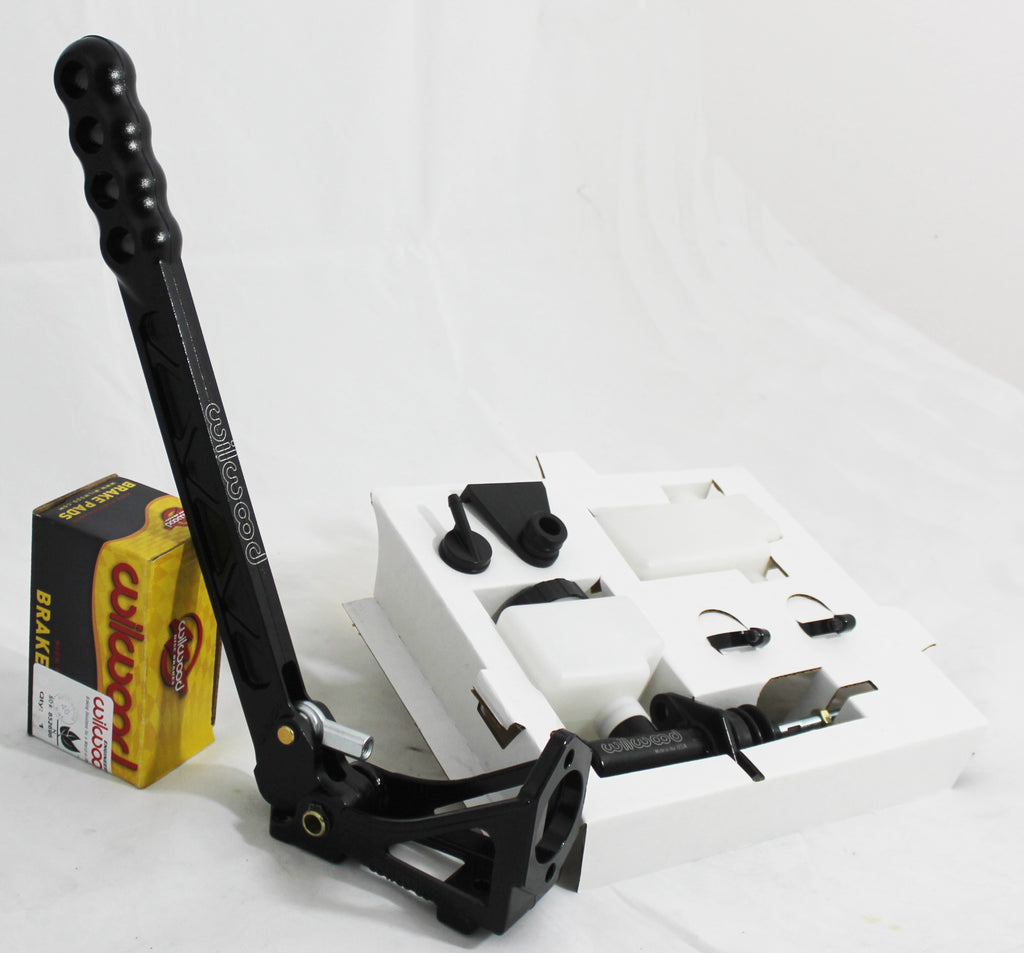

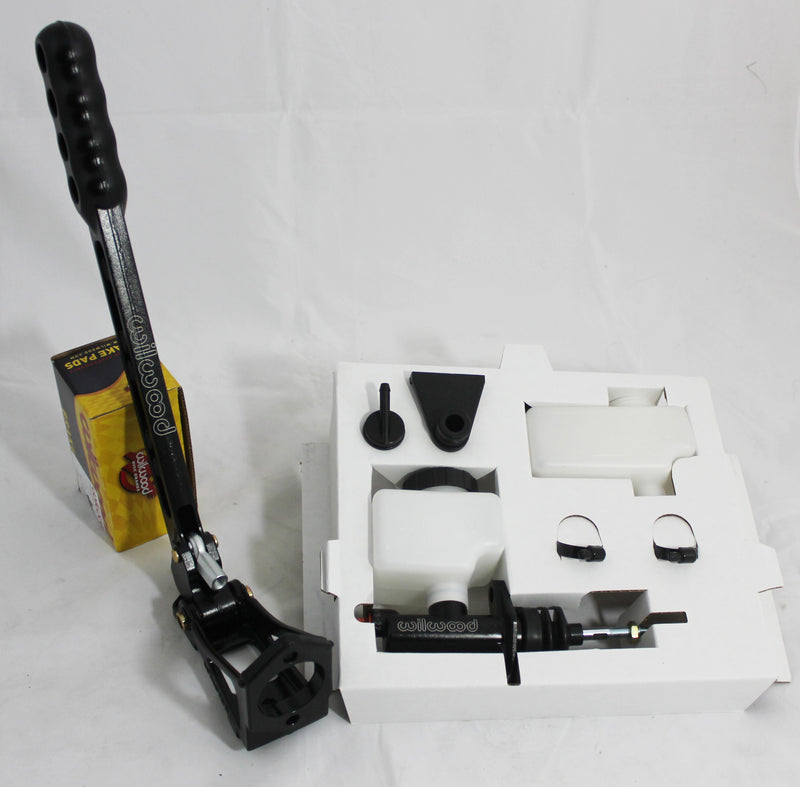

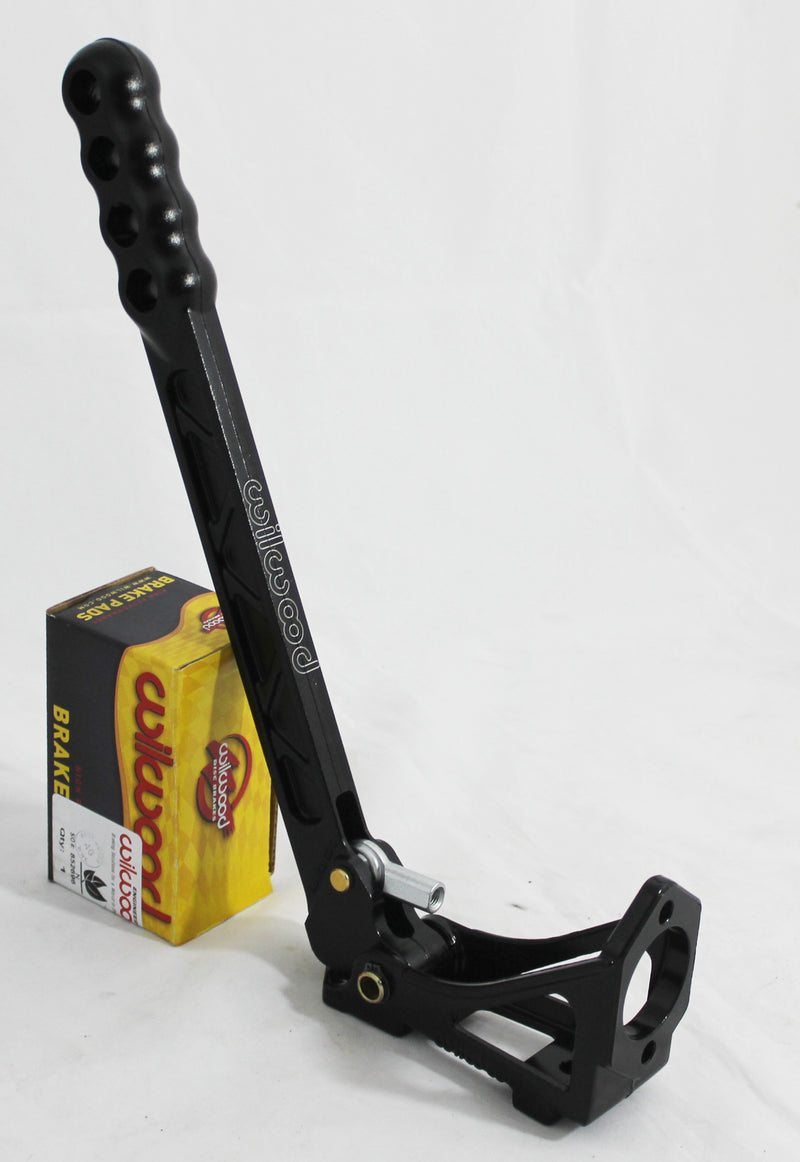

Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25” mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.
After much testing, we concluded the Wilwood 3/4" bore master cylinder locks up our Wilwood 4 piston Dynalite calipers best.
Compact Remote Flange Mount Master Cylinder - Product Summary
Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
